Unique Cabinet Design

IP65 water and dust ingress protection

High wind resistance classification Against harsh environment

Anti-UV ensures product longevity

Die Casting Aluminum Cabinet

Excellent thermal management

Ultra slim & light weight

High mechanical & structural strength

Multifunction joint options, can be applied for both ground and stage LED screen

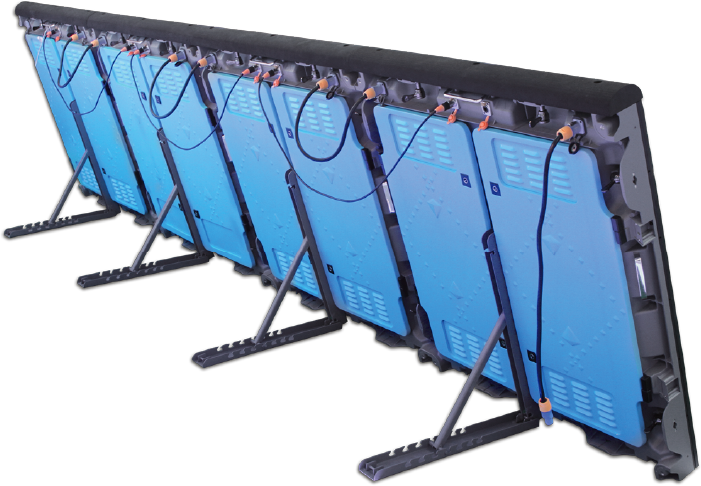

Individual Base Support Bracket

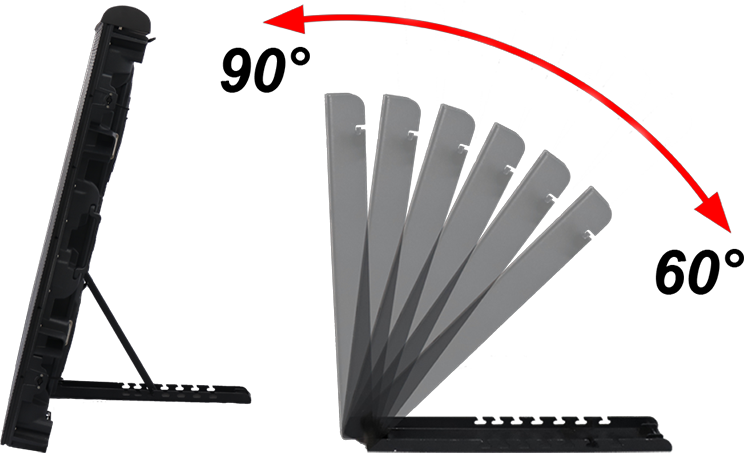

Angle adjustable from 60°-90°
Optimize the best viewing for audience and camer

Soft Modular Mask + Protective Cushion

Superior mechanical strength, toughness & soft, achieving high impact resistance rating
Protect athlete's body and LED lamp from striking

Multiple signal and slots connection

HDMI- HD display equipment

High refresh

3840Hz refresh rate
Meet the dynamic shooting on sports field
Avoid screen flickering

High refresh

High refresh 2

Optical Fiber Transmission

Reduces the signal delay caused by the long transmission distance on the football field
Ensures the consistency of the screen playing

Inquiry now

Data & Power Backup

In order to avoid black-out screen during the events, we can provide data backup solution. When one of the signal cables breaks down, the screen is still able to display the live-feed or advertising content.

Easy Installation & Commissioning

Fast & efficient wire and data connection
Quick cabinet connection by claw lock systems
One-key software set up & operation

Inquiry now

Robust flight case

Convenient for loading and unloading
Avoid shock, crash and fork truck slots



Pixel PitchP6.67P8P10 (2S)
Pixel ConfigurationSMD3535SMD3535SMD3535
Density (Pixels/㎡)22,50015,62510,000
Module Resolution (Pixel)48x2440x2032x16
Module Size (mm)320x160320x160320x160
Driving Mode (Duty)1/61/51/2
Cabinet MaterialDie Casting AluminumDie Casting AluminumDie Casting Aluminum
Cabinet Size (mm)960x960960x960960x960
Cabinet Weight (KG)333333
Brightness (CD/㎡)≥5,000≥5,000≥6,000
Viewing Angle (°)140140140
Gray Grade (Bits)1201414
Operation PowerAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60Hz
Max. Power Consumption (W/㎡)560600850
Avg. Power Consumption (W/㎡)180200285
Frame Frequency (Hz)≥60≥60≥60
Refresh Frequency (Hz)≥3,840≥3,840≥3,840
Working Temperature (ºC)-20~+60-20~+60-20~+60
Lifetime (Hours)100,000100,000100,000
Protecting GradeIP65(front),IP54(rear)IP65(front),IP54(rear)IP65(front),IP54(rear)
