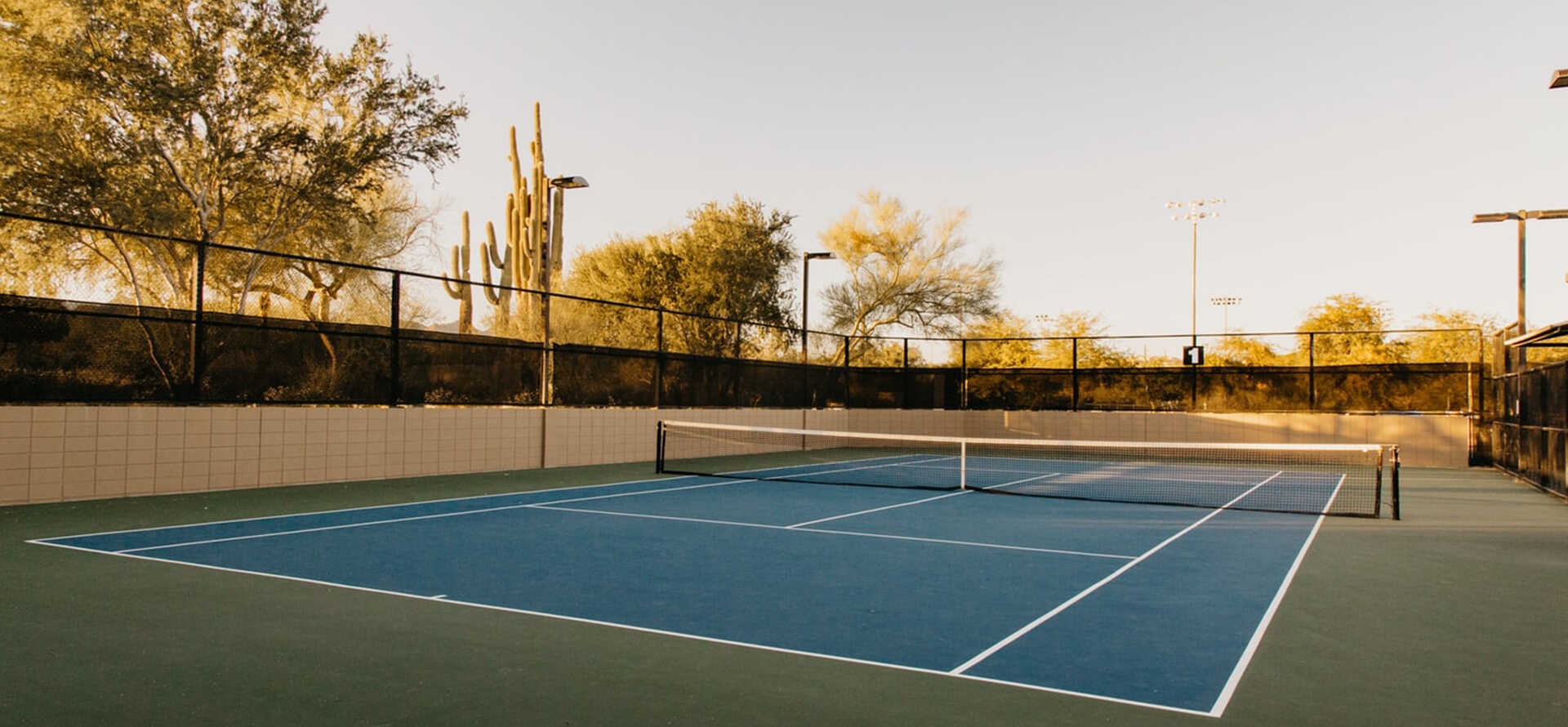

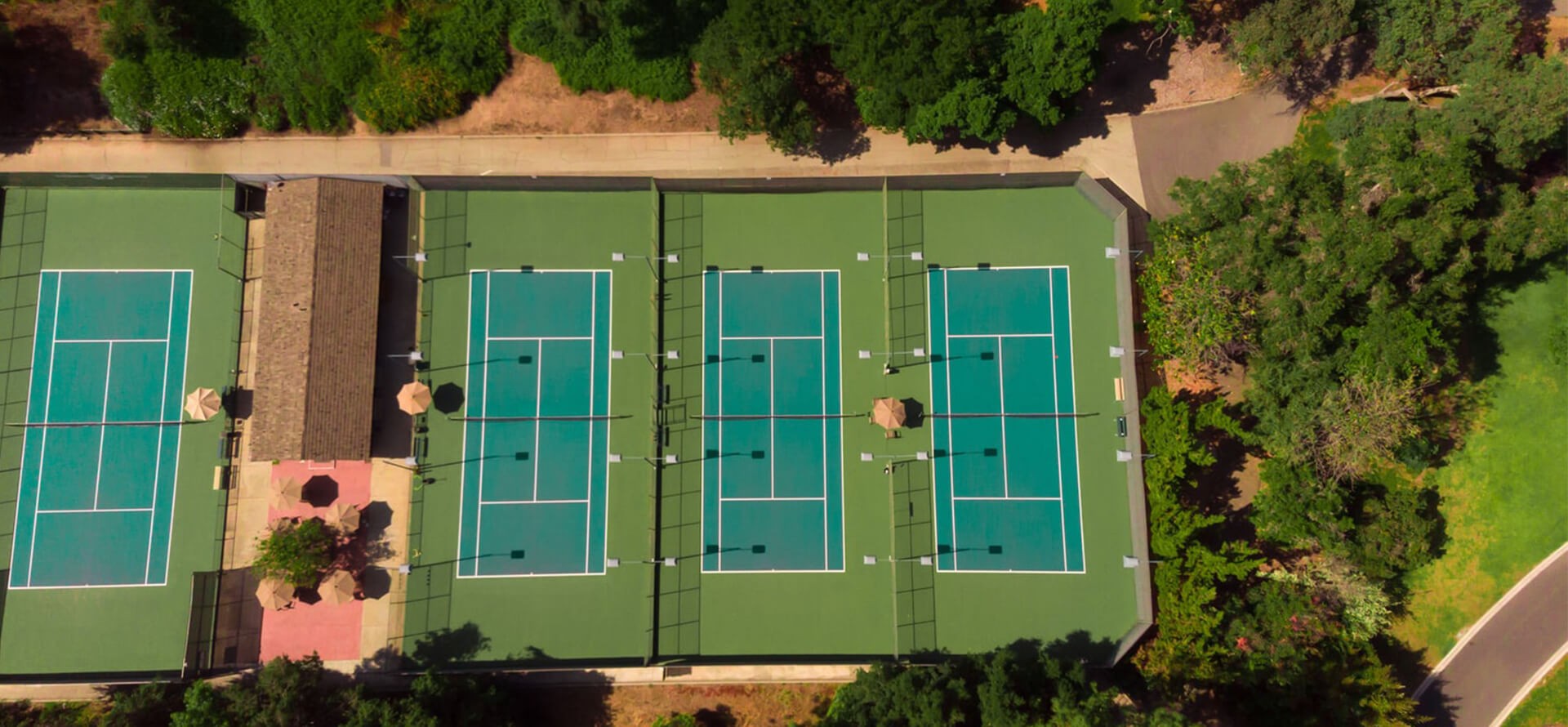

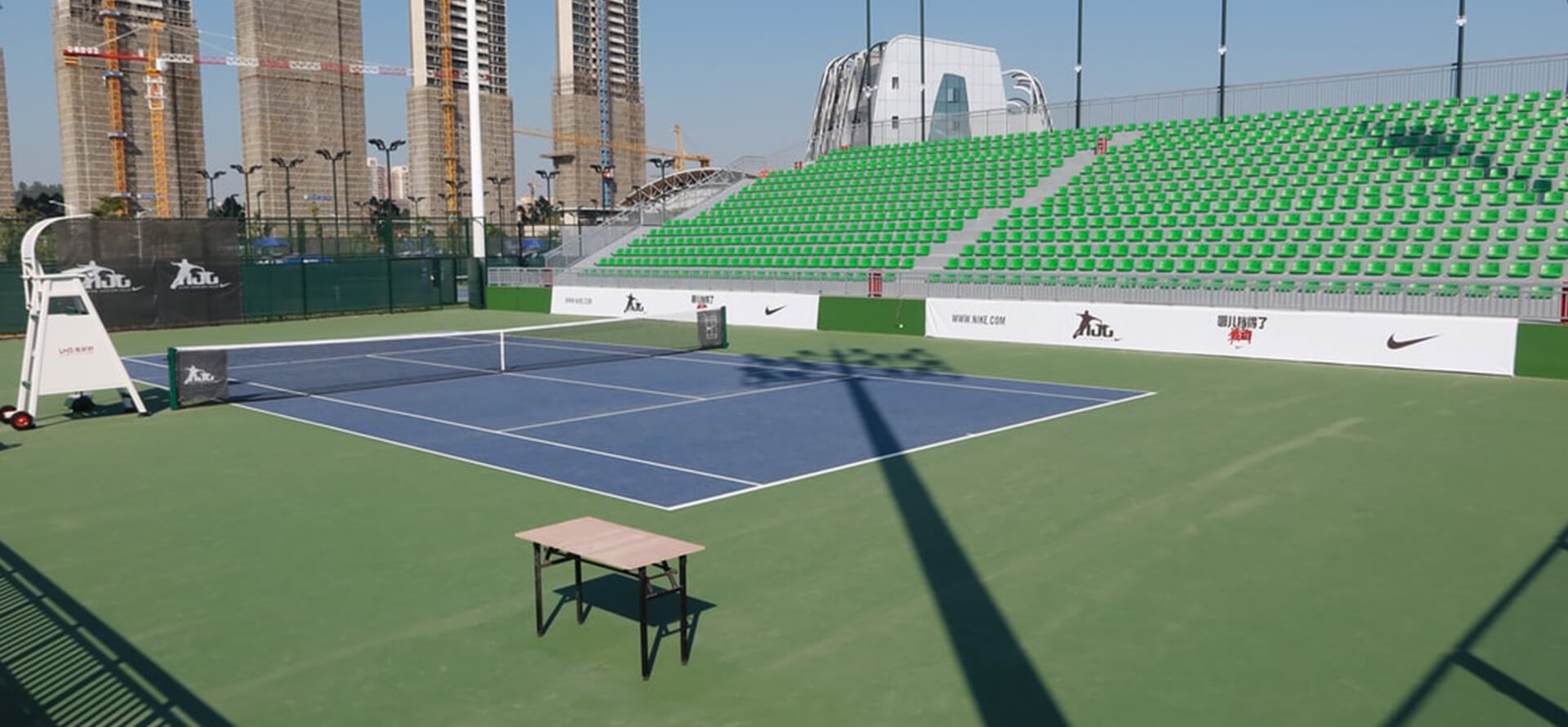

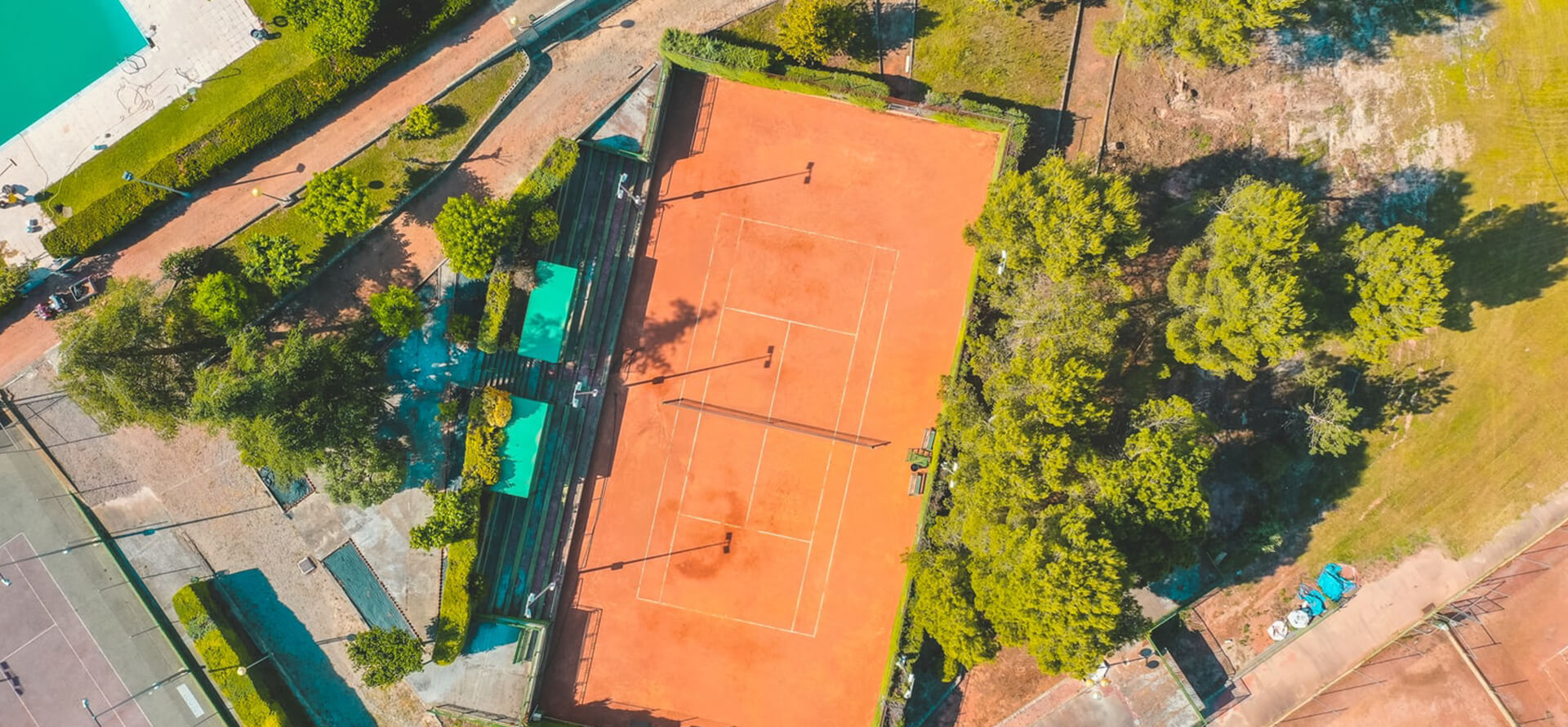

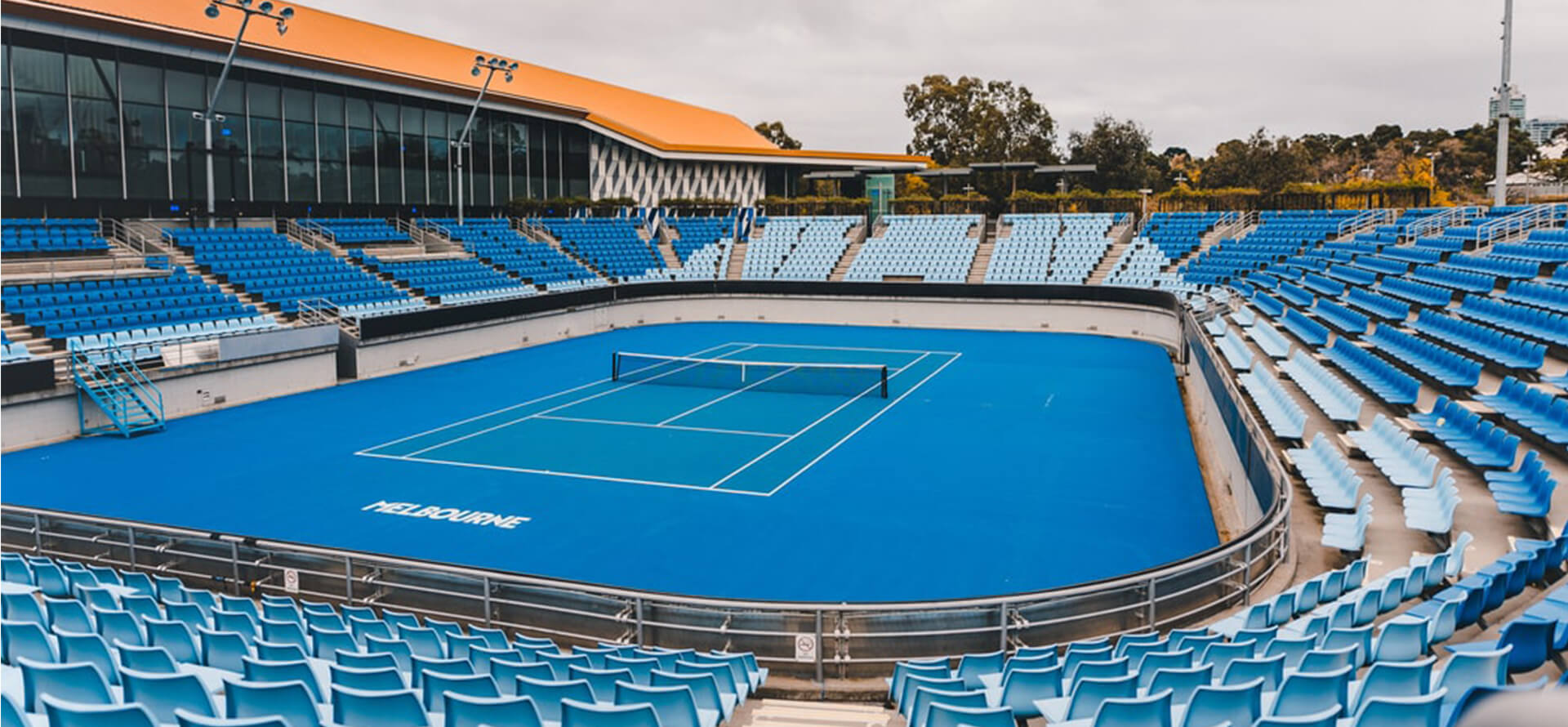

It can be widely applied in Port, Wharf, Tower Crane, Golf Course, Football Field, Stadium etc.
High wattage from 250W to 1250W
Light efficiency up to 140lm/W
High strength polycarbonate lens, optical lighting distribution: 10°/ 25°/ 45°/ 60°/ 90°/ 130*30*60°/ 65*25*60°
Blue corner: Unique appearance and increases industrial look

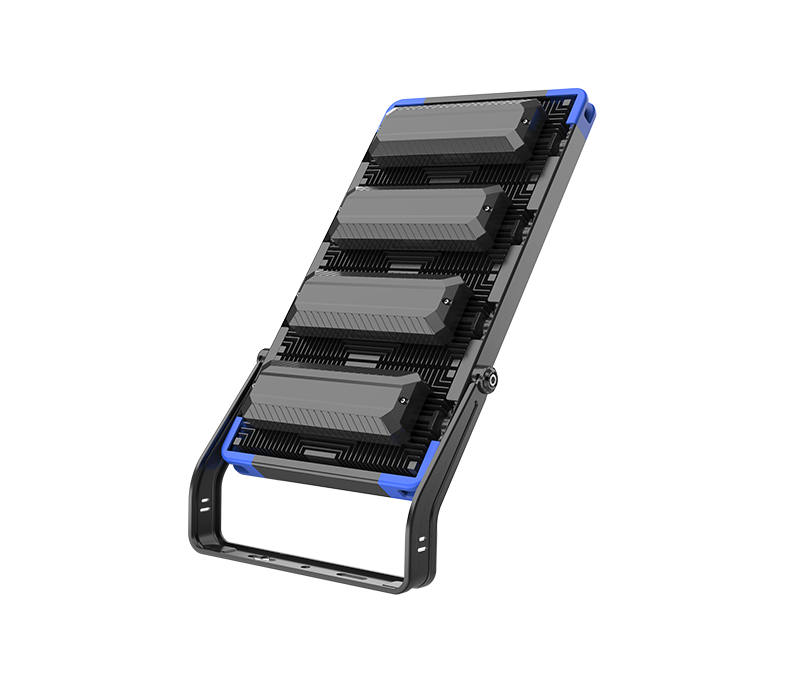

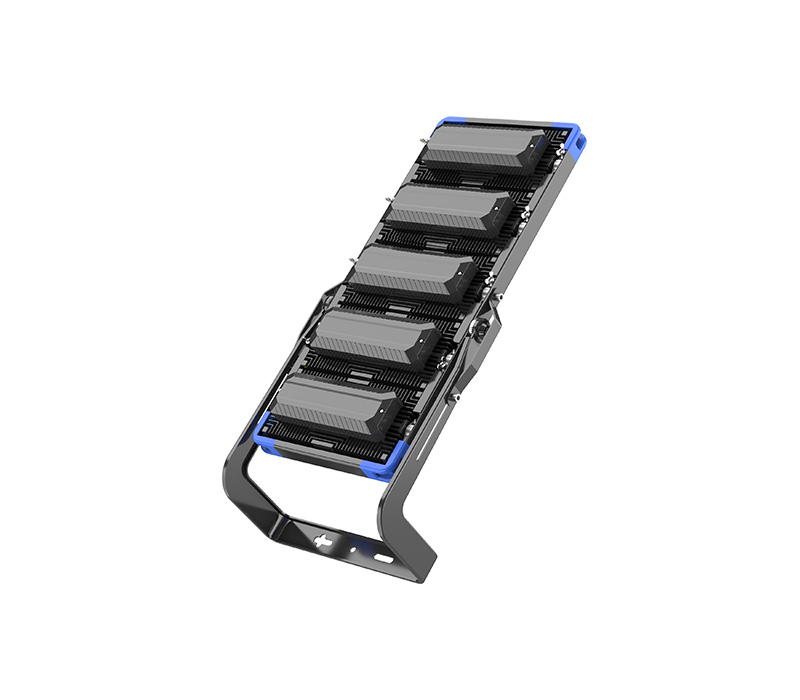

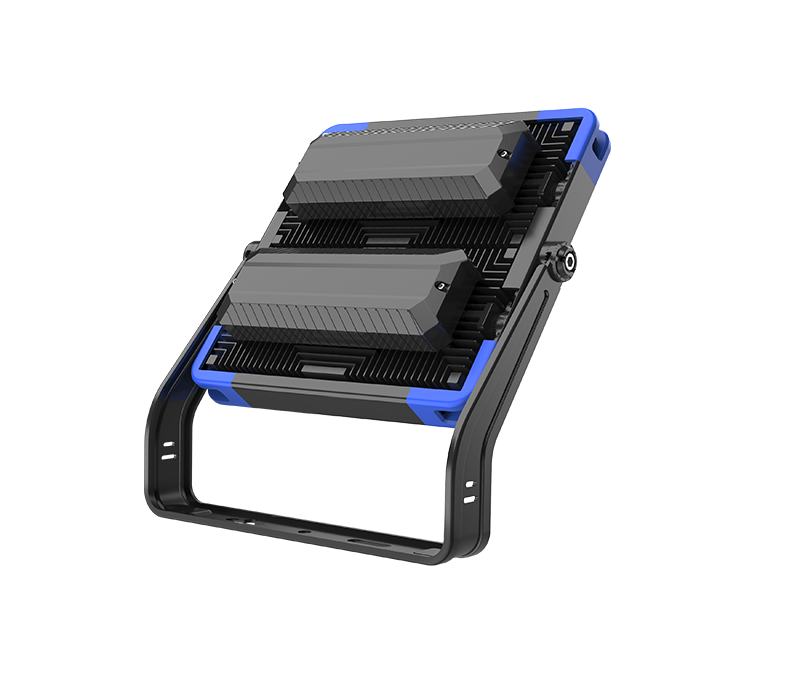

Modular design: Easy to assemble and disassemble, facilitate customer inventory and fast delivery to project
Rotatable module: Each module can be rotated by ± 30°
Die casting heat sink: Excellent thermal management & Compact structure
Racked angle: Allows for precise installation, up to 270°
Integrated breather valve: Balances the internal & external temperature & humidity
Spill shield: reduces the light pollution
Top brand LED chip and driver, ensure the product quality and lifetime
Ingress protection: IP66 waterproof
Double surge protection: Driver & extra 10KV SPD
Working Temperature: -35℃ to +50℃
Storage Temperature: -35℃ to +50℃
Working Humidity: 0%~85%
Storage Humidity: 0%~90%
Warning
1. Please install the lamp according to the installation to avoid dropping and electric shock.
2. Don't exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
3. Working voltage is not to be exceeded AC100-277V 50/60Hz.
Attention
1. Don't install the lamp to non-stable place.
2. Installed by qualified electrician.
3. Switch off the switch box and contact certified electrician if the lamp works abnormally.
| Model No. | ISL-QCD-C250W | ISL-QCD-C500W | ISL-QCD-C750W | ISL-QCD-C1000W | ISL-QCD-C1250W |
| Rated Power | 250W | 500W | 750W | 1000W | 1250W |
| Light Efficiency | 140lm/W | ||||
| Input Voltage | AC100-277V, 50/60Hz | ||||
| LED Chip | Lumileds/ Osram | ||||
| Driver | Sosen/ Meanwell | ||||
| Beam Angle | 10°/ 25°/ 45°/ 60°/ 90°/ 130*30*60°/ 65*25*60° | ||||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | ||||
| CRI | >70/ 80Ra | ||||
| IP Rating | IP66 | ||||
| IK Rating | IK08 | ||||
| SPD | 10KV | ||||
| Operation Temperature | ﹣35°C- +50°C | ||||
| Warranty | 5Years | ||||
| Lifespan | 50,000Hrs | ||||
| Dimension | 462*222*111mm | 462*399*111mm | 462*584*111mm | 462*761*111mm | 502*1072*307mm |
| N.W. | 6.55KG | 15.20KG | 21.20KG | 27.00KG | 34.00KG |
| Certificate | UL/ETL/DLC/TUV/CB/ENEC/CE/SAA/FCC/RoHS/CQC | ||||
