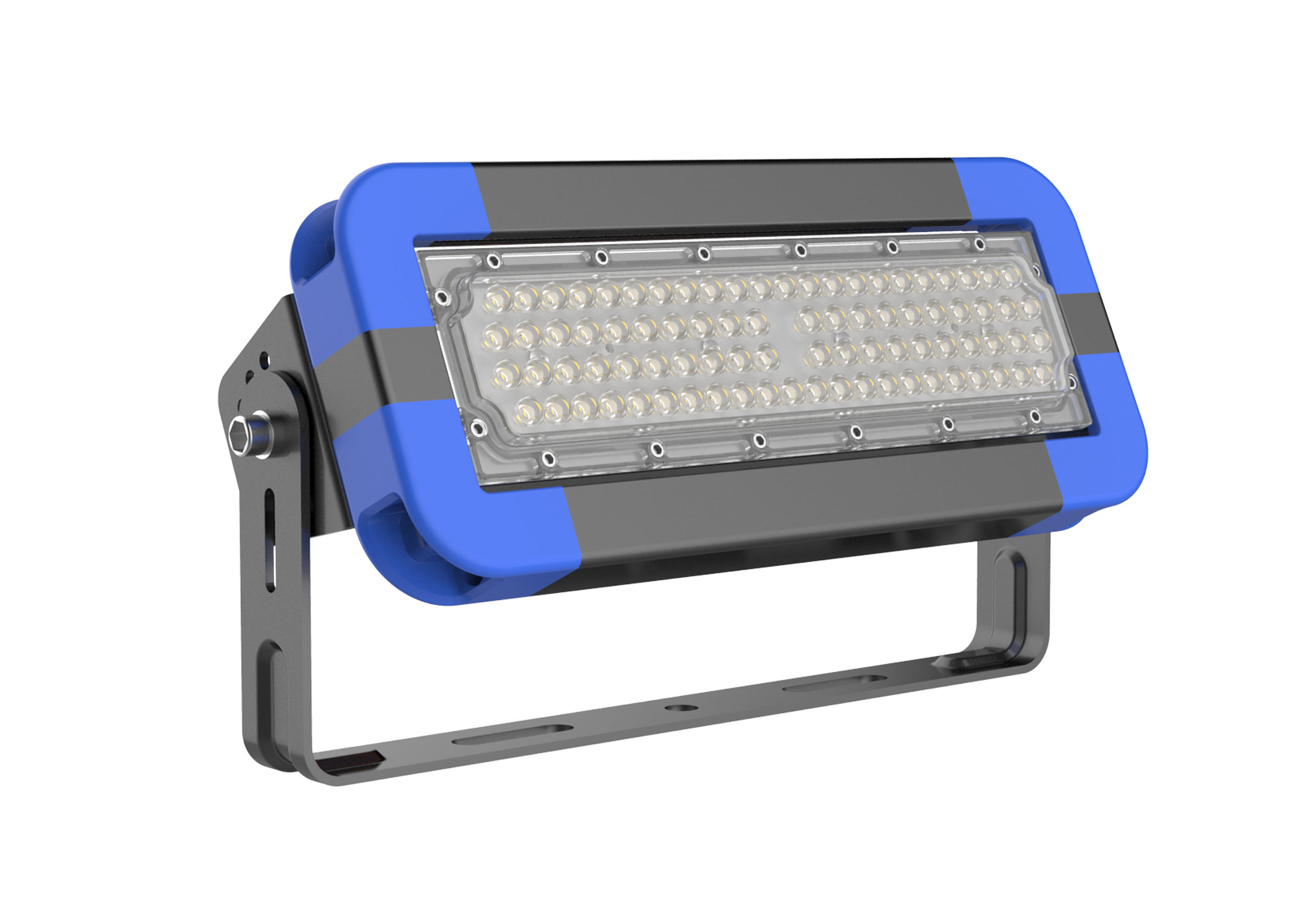

NOVA Tunnel Light

Inquiry now

Applications

Port, Wharf, T ower crane, golf course, football field, stadium, tunnel, etc.

Features

Extrusion technology: AL6063 provide the heat sink with excellent thermal management

Blue corner: unique appearance and increases industrial look

Integrated breather valve: balance the internal & external pressure, humidity and temperature

Galvanized steel bracket: high corrosion resistance, rotatable up to 180°

Each module with 50 watt, up to 10 modules can be combined into 500watt

Optical lighting distribution: symmetrical: 15°,25°,45°,60°,90°,asymmetrical: 20*50°, 30*70°, 80*140°

Top brand LED chip and driver: Lumileds, OSRAM, MW & Sosen

Input voltage: AC100-277V

Ingress protection IP66 and impact protection IK08

Wind resistance rate: 14

Operation temperature: -35°-+50°

Lifetime: 60,000 hours

Warranty: 5 years

Environment Requirement

Working Temperature:-35~+50℃

Storage Temperature:-35~+50℃

Working Humidity:0%~85%

Storage Humidity:0%~90%

Installation instruction

Note: The installation base must be able to support 10 times weight of the products

Warning

1. Please install the lamp according to the installation to avoid dropping and electric shock.

2. Don't exchange the lamp as will to avoid dropping ,electricshock and damage of the lamp.

3. Working voltage is not to be exceeded AC100-277V 50/60Hz

Attention

1. Don't install the lamp to non-stable place.

2. Installed by qualified eletrician.

3. Switch off the switch box and contact certified electrician if the lamp works abnormally

Product parameter

Model No.ISL-SDD-50WISL-SDD-100WISL-SDD-150WISL-SDD-200WISL-SDD-250WISL-SDD-300WISL-SDD-400WISL-SDD-500WISL-SDD-600W
Rated Power50W100W150W200W250W300W400W500W600W
Input VoltageAC100~277V,50-60Hz
LED ChipLumileds / Epistar
LED DriverSosen/Meanwell
Material Extrusion aluminum 6063 +Lens
CRIRa>70, Ra>80
Power FactorPF>0.95
CCT2800-6500K
Light EfficacyUp to 150lm/W @ Ra70, Up to 140lm/W @ Ra80
IP RatingIP65/IP66
IK RatingIK08,  IK10 Available
Operation Temperature﹣35°C- +50°C
Beam AngleSymmetrical 15°/30°/45°/60°/90° Asymmetrical 50°*20°/70°*30°/140°*80°
Warranty5years, 7years
Lifespan 60,000Hrs
Dimension310x87x170mm310x87x228mm310x87x309mm310x87x382mm310x87x459mm310x87x539mm310x87x388mm310x87x461mm310x87x529mm
Packing340x110x190mm340x110x190mm340x110x190mm340x110x190mm340x110x190mm340x110x190mm340x110x190mm340x110x190mm340x110x190mm
WeightN.W:2.3KG/G.W:2.6KGN.W:3.6KG/G.W:4.1KGN.W:4.5KG/G.W:5KGN.W:5.5KG/G.W:6.5KGN.W:6.5KG/G.W:7.5KGN.W:8KG/G.W:9KGN.W:11KG/G.W:12KGN.W: 12KG/G.W:13.5KGN.W: 14KG/G.W:15.5KG
CertificateCCC / CQC / TUV / CB / FCC / SAA / CE / RoHS
