It can be widely applied in Warehouse, Factory, Workshop, Plant, Supermarket, Gas Station, Highway Toll Station, Food Factories, Livestock Farms etc.
Offered in 100W, 150W and 200W
Up to 150lm/W
Optical UV resistant PC lens with 94% light transmittance, IK08
Optical lighting distribution: 60°/90°/120°
Die-casting technology with ADC12, excellent thermal management
Unique design in appearance, smooth surface, easy for cleaning and can be applied in specific application such as food factories, livestock farms, factories or workshops with heavy dust
Top brand LED chip and driver, ensure the product quality and lifetime
Ingress protection rating: IP65
Working Temperature: -35℃ to +50℃
Storage Temperature: -35℃ to +50℃
Working Humidity: 0%~85%
Storage Humidity: 0%~90%
Warning

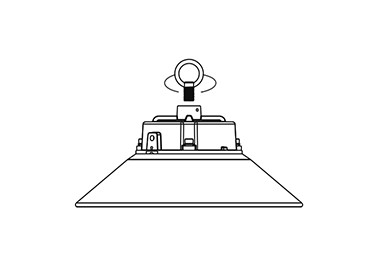

1. Please install the lamp according to the installation to avoid dropping and electric shock.
2. Don't exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
3. Working voltage is not to be exceeded AC100-277V 50/60Hz.
Attention
1. Don't install the lamp to non-stable place.
2. Installed by qualified electrician.
3. Switch off the switch box and contact certified electrician if the lamp works abnormally.
| Model No. | ISL-UFO-C100W | ISL-UFO-C150W | ISL-UFO-C200W |
| Rated Power | 100W | 150W | 200W |
| Input Voltage | AC100-277V, 50/60Hz | ||
| Light Efficiency | 150lm/W | ||
| LED Chip | Lumileds2835 | ||
| LED Driver | Sosen/ ZH | ||
| Beam Angle | 60°/ 90°/ 120° | ||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | ||
| CRI | 80Ra | ||
| IP Rating | IP65 | ||
| IK Rating | IK08 | ||
| Operation Temperature | ﹣35°C- +50°C | ||
| Warranty | 5Years | ||
| Lifespan | 50,000Hrs | ||
| Dimension | ø285*155mm | ø300*172mm | ø320*192mm |
| Certificate | CCC/CB/CE/SAA/FCC/RoHS | ||
