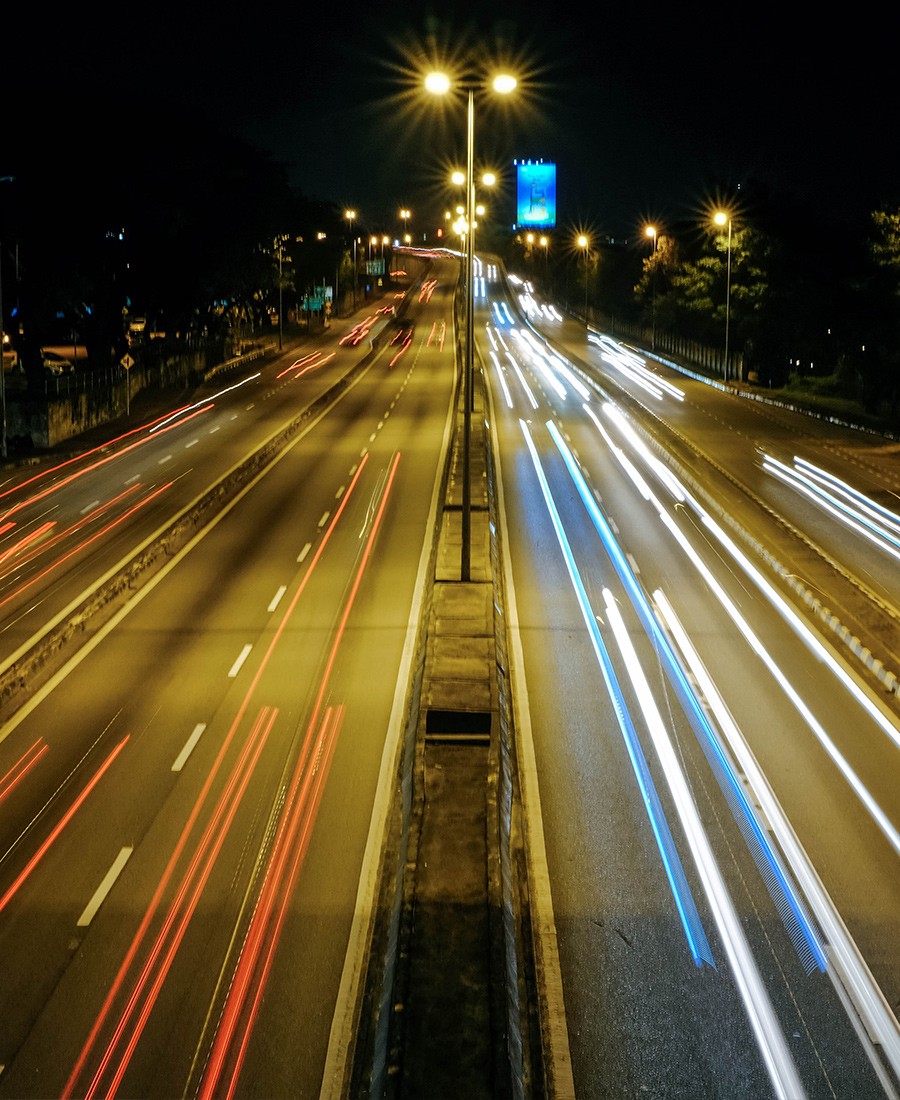

Street, Road, highway, viaduct, overpass, sidewalk, outdoor lighting places, such as squares,schools, residential areas and parks.
Sosen SPD 10KV
Waterproof Breathing Valve，balance the internal & external temperature and humidity
Photocell (Option)
Silicon Rubber Seal Ring
Switch Off Connector, automatically disconnect the power supply when opening the back cover
Die Casting Aluminum Housing with Smooth Back Cover Design, no dust and water will stay on the housing

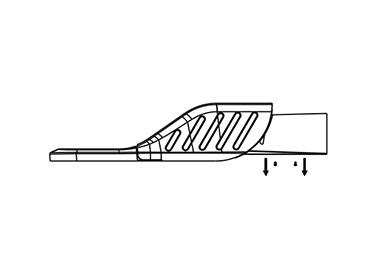

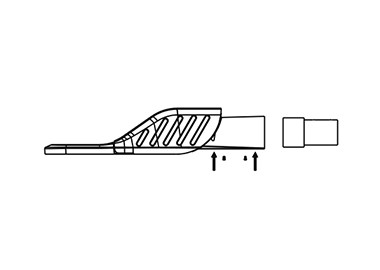

Opening by two clips, tool-less design
Spirit Level
Post Top Or Side Entry, -20°-＋20° Title
Optical Len with Tempered Glass Cover, High Anti-Corrosion and UV for costal area
Working Temperature：-35~+50℃
Storage Temperature：-35~+50℃
Working Humidity：0%~85%
Storage Humidity：0%~90%
| Model No. | ISL-LDA-60W/90W | ISL-LDA-120W/150W | ISL-LDA-180W/210W/240W |
| Rated Power | 60W/90W | 120W/150W | 180W/210W/240W |
| Input Voltage | AC100~277V，50-60Hz | ||
| LED Chip | Lumileds 3030-144PCS | Lumileds 3030-192PCS | Lumileds 3030-288PCS |
| LED Driver | Sosen/Meanwell | ||
| Material | Die-casting aluminum +Lens | ||
| CRI | Ra>70, Ra>80 | ||
| Power Factor | PF>0.95 | ||
| CCT | 2700-6500K | ||
| Light Efficacy | Up to 150lm/W @ Ra70, Up to 140lm/W @ Ra80 | ||
| IP Rating | IP66 | ||
| IK Rating | IK08, IK10 Available | ||
| Operation Temperature | ﹣25°C- +50°C | ||
| Beam Angle | EM1~EM5 (TI ~ TIV) | ||
| Warranty | 5years, 7years | ||
| Lifespan | 50,000Hrs | ||
| Dimension | 520*300*135mm | 650*300*135mm | 720*300*135mm |
| Packing | 555*320*140mm | 640*320*140mm | 755*320*140mm |
| Weight | N.W:5KG/G.W:5.3KG | N.W: 6.5KG/G.W:6.8KG | N.W: 8KG/G.W:8.5KG |
| Certificate | CCC / CQC / TUV / CB / FCC / SAA / CE / RoHS | ||

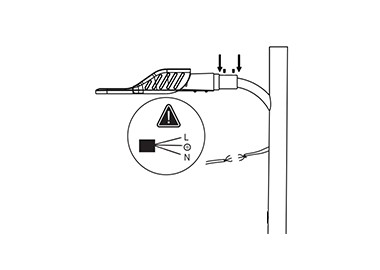

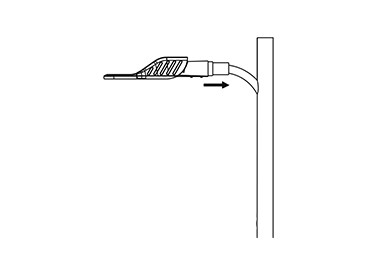

1. Please install the lamp according to the installation to avoid dropping and electric shock.
2. Don't exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
3. Working voltage is not to be exceeded AC100-277V 50/60Hz
1. Don't install the lamp to non-stable place.
2. Installed by qualified eletrician.

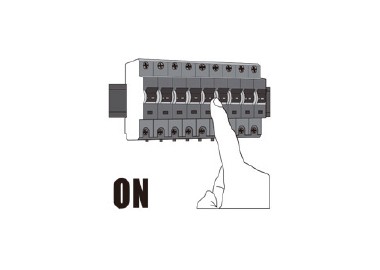

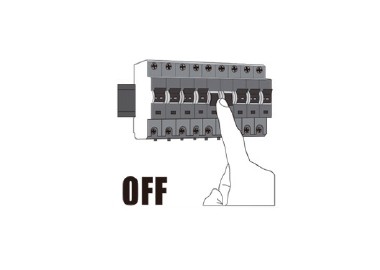

3. Switch off the switch box and contact certified electrician if the lamp works abnormally
