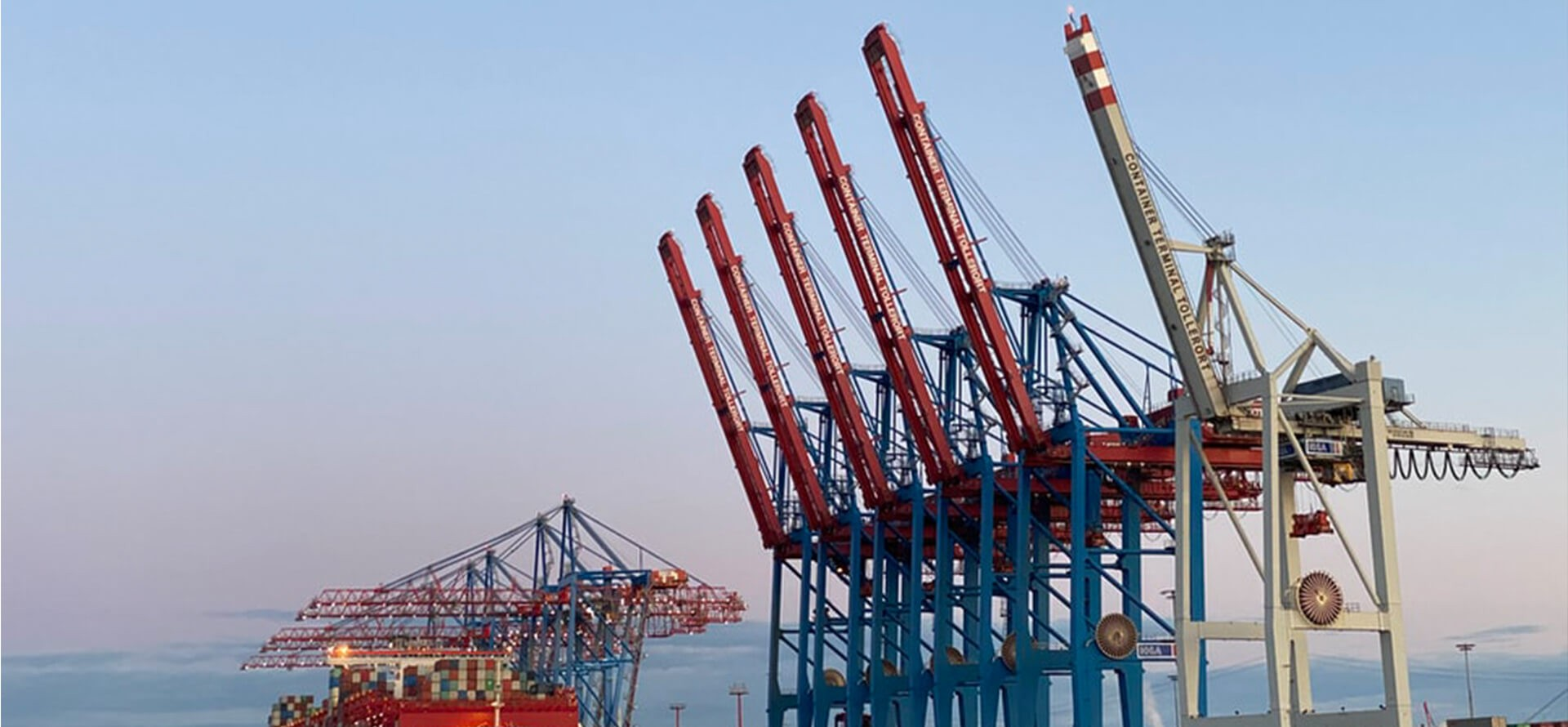

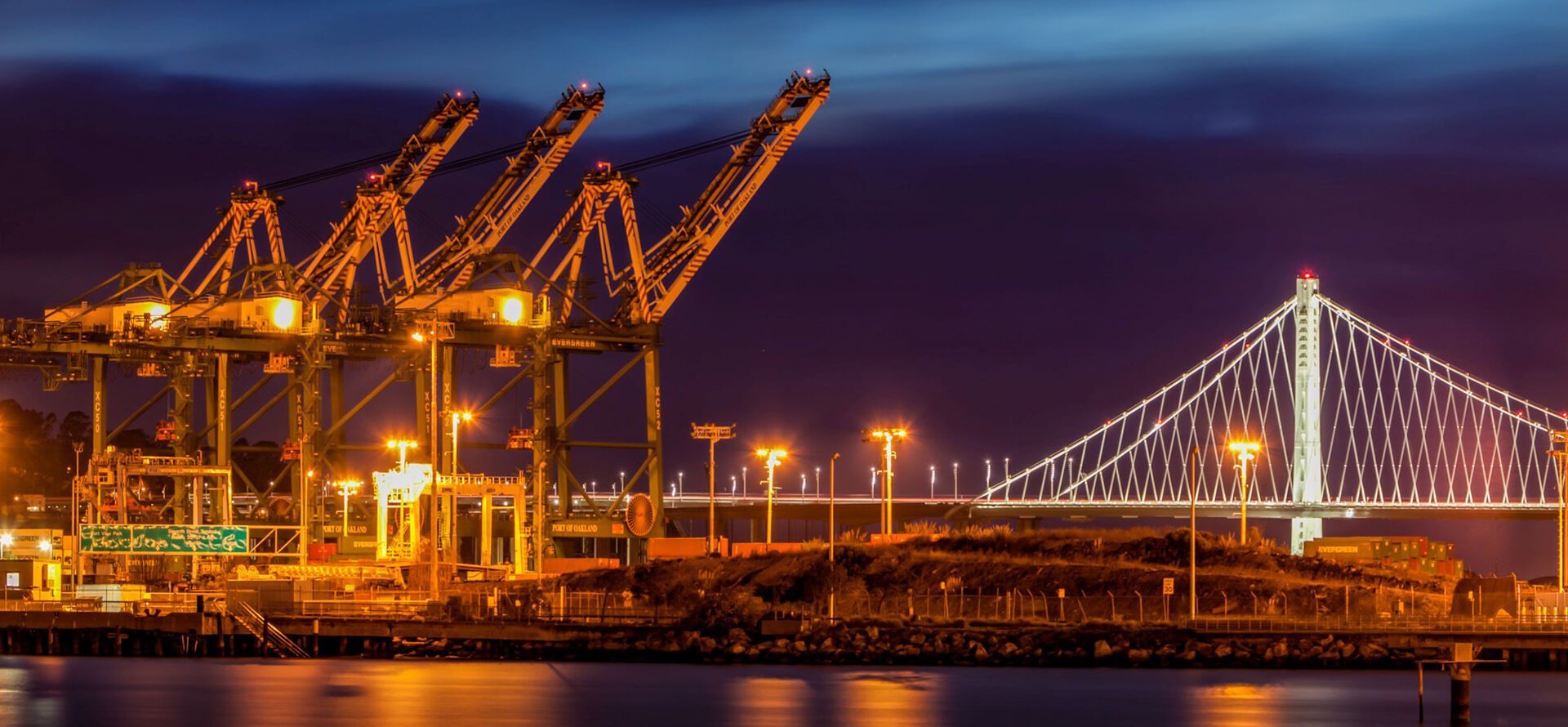

It can be widely applied in Port, Wharf, Tower Crane, Golf Course, Football Field, Stadium etc.
High wattage from 400W to 1800W
Light efficiency up to 150lm/W
High strength polycarbonate lens, optical lighting distribution: 10°/ 25°/ 45°/ 60°/ 90°/ Asymmetrical 60°

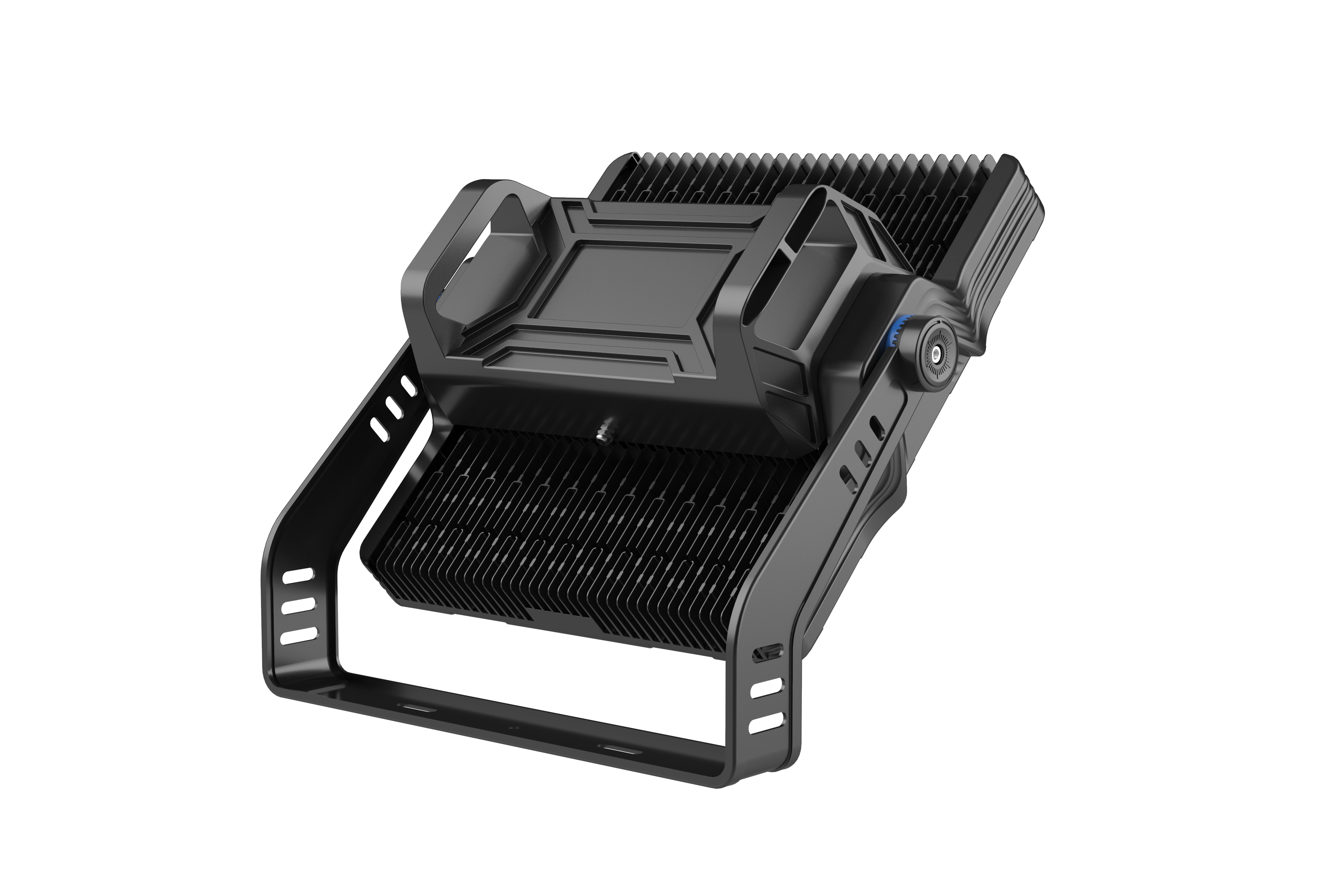

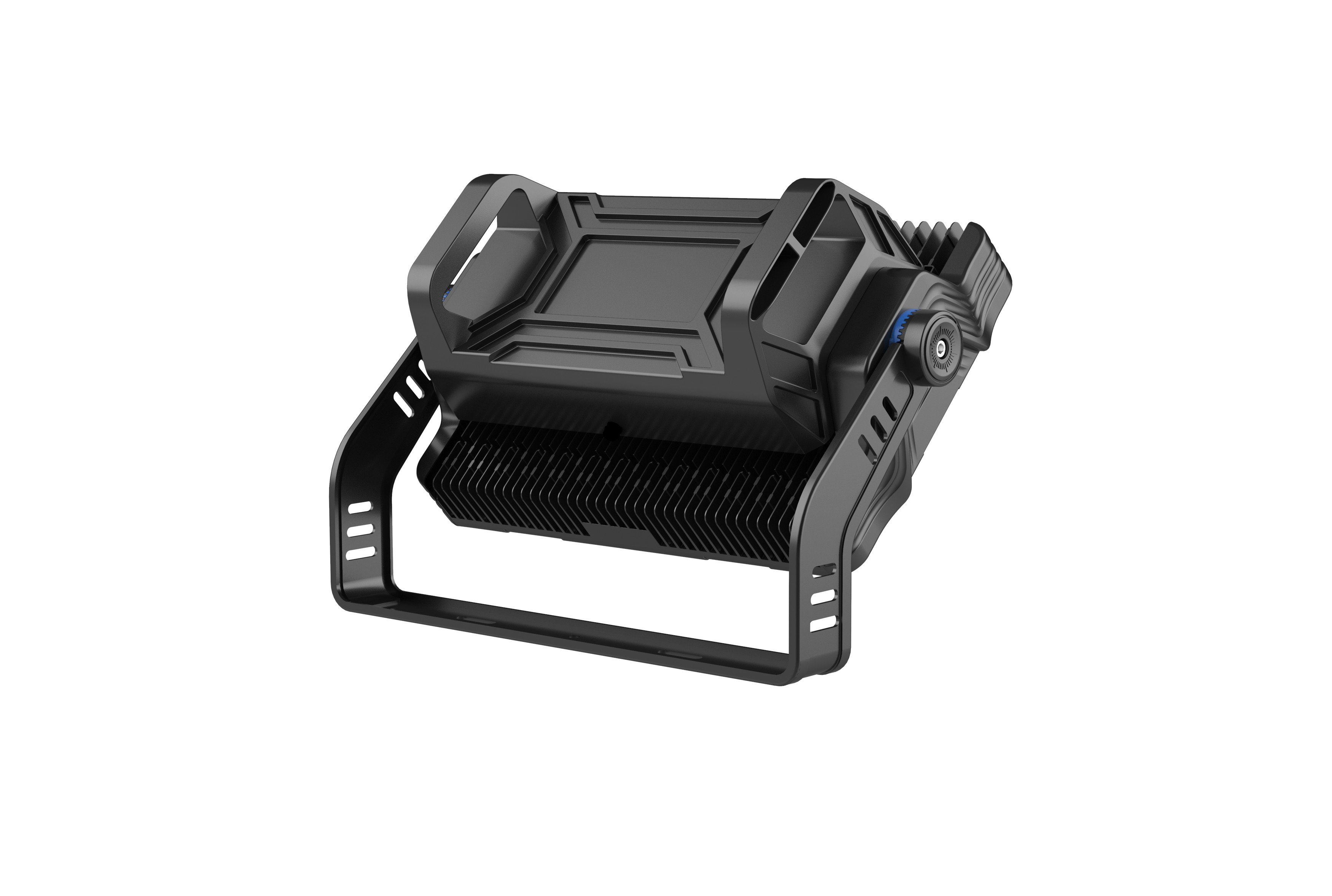

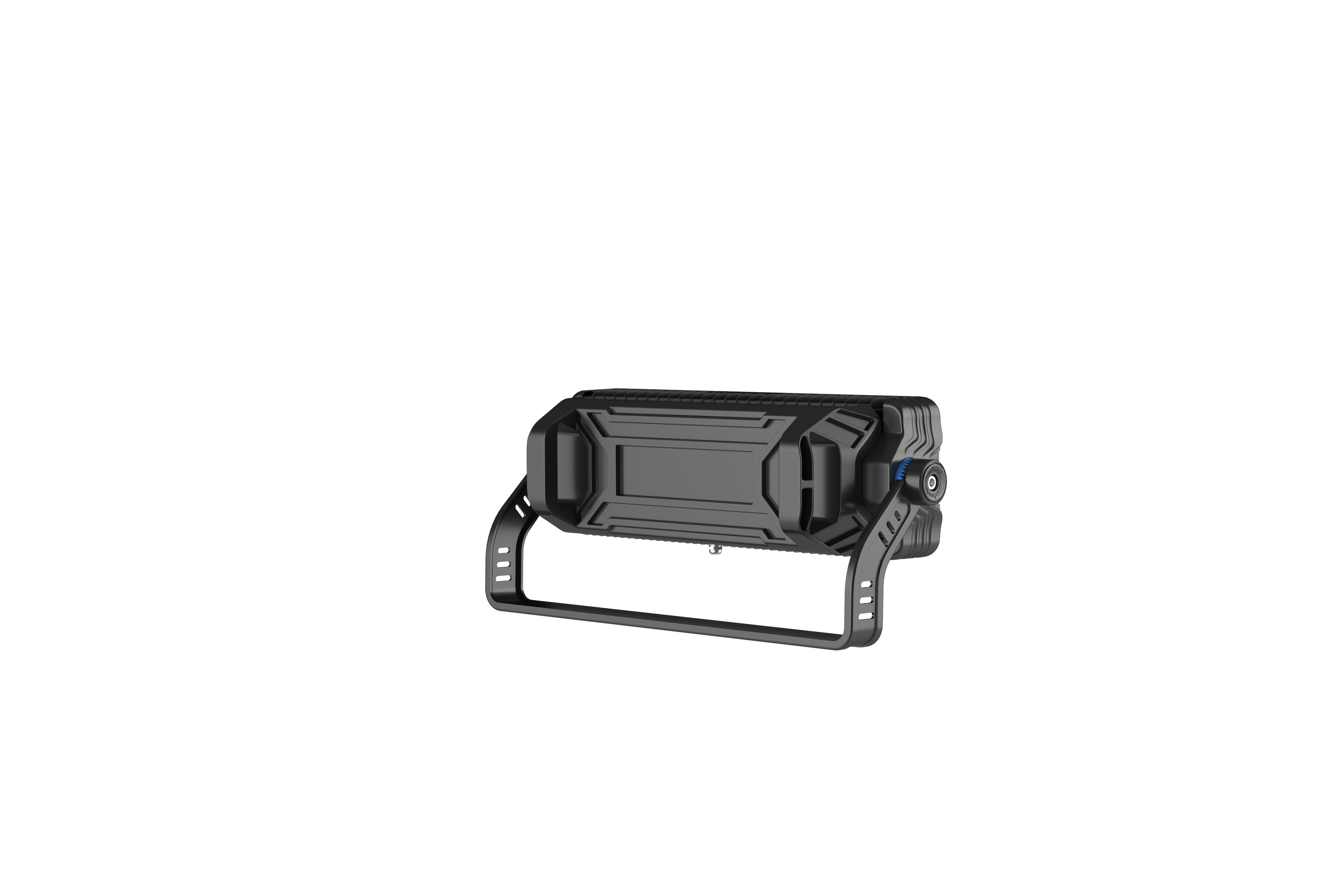

Die casting heat sink: Excellent thermal management & Compact structure

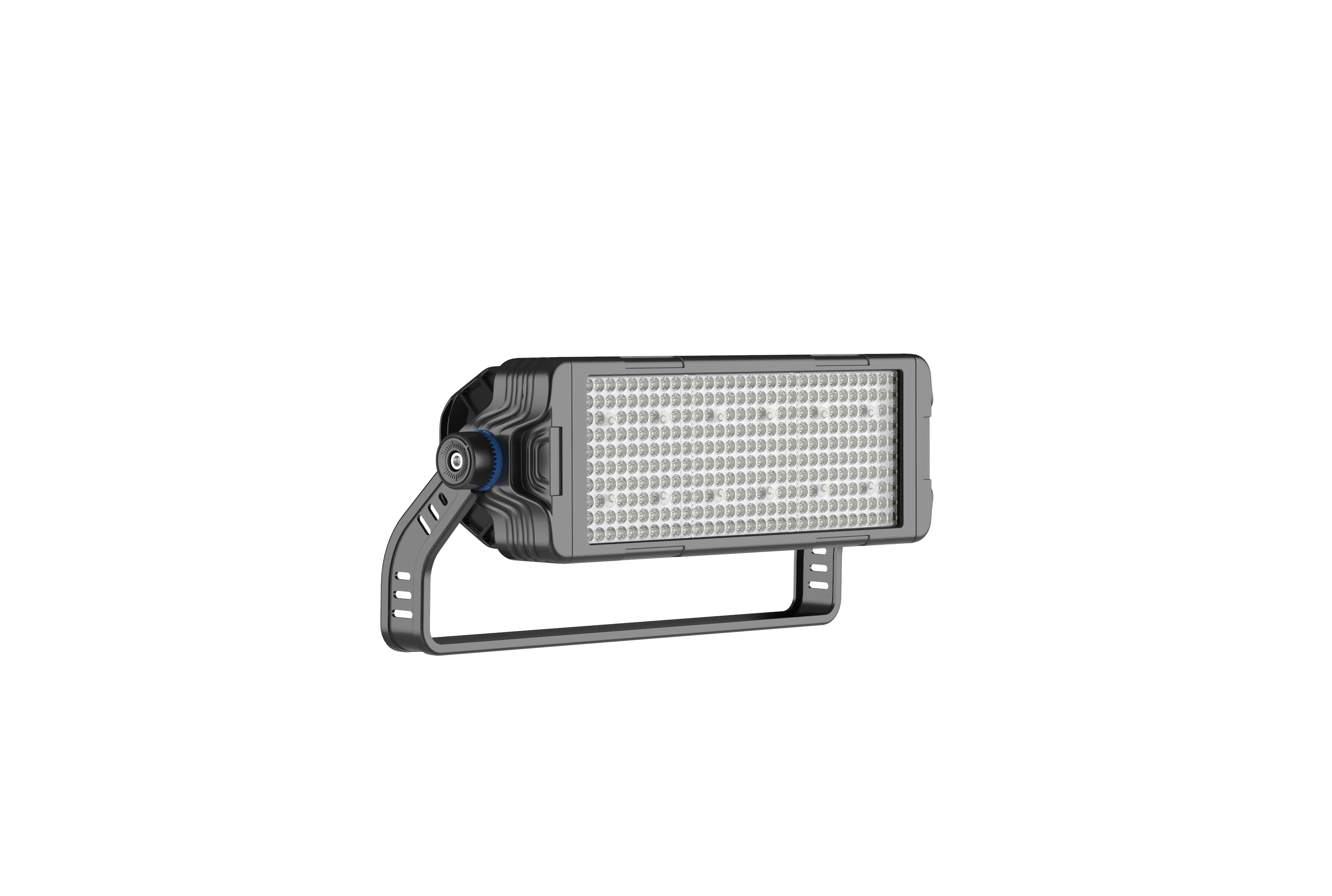

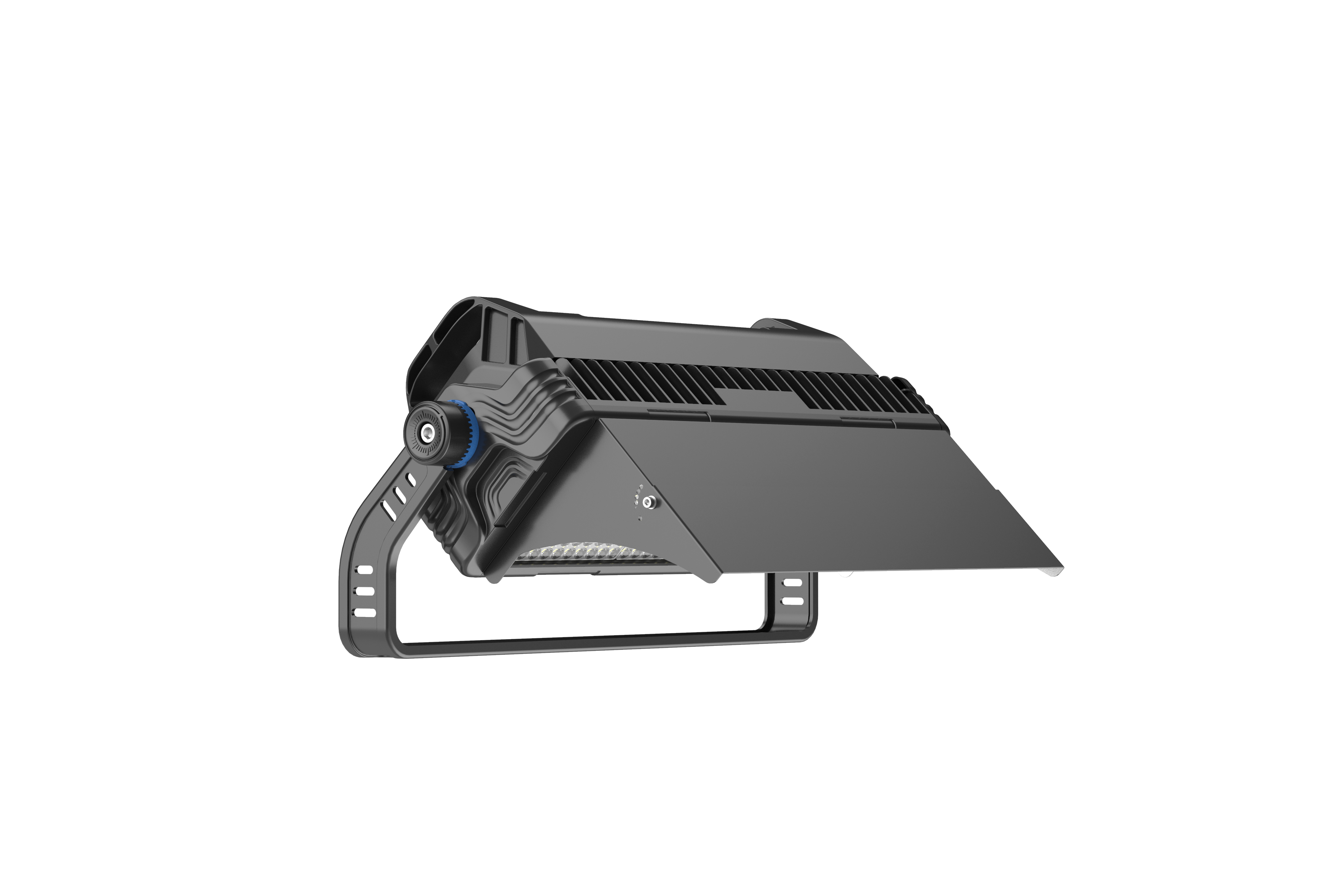

Racked angle: Allows for precise installation, up to 270°

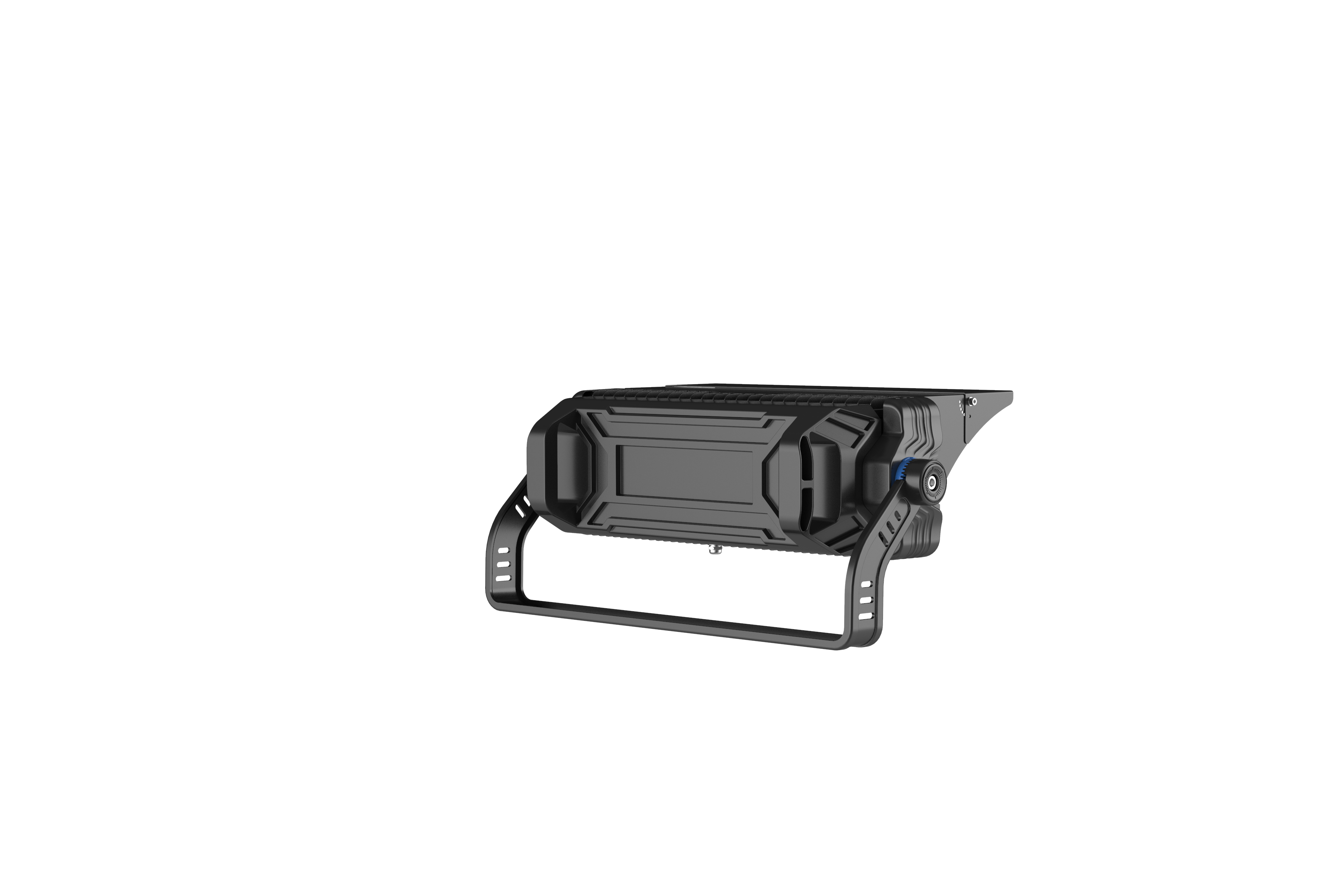

4mm thickness L shape bracket: Wind resistant rate 17
Integrated breather valve: Balances the internal & external temperature & humidity
Tempered glass cover option: To apply in harsh conditions
Top brand LED chip and driver, ensure the product quality and lifetime
Ingress protection: IP66 waterproof
Double surge protection: Driver & extra 10KV SPD
Options: DALI, DMX
Working Temperature: -35℃ to +50℃
Storage Temperature: -35℃ to +50℃
Working Humidity: 0%~85%
Storage Humidity: 0%~90%
Warning
1. Please install the lamp according to the installation to avoid dropping and electric shock.
2. Don't exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
3. Working voltage is not to be exceeded AC100-277V 50/60Hz.
Attention
1. Don't install the lamp to non-stable place.
2. Installed by qualified electrician.
3. Switch off the switch box and contact certified electrician if the lamp works abnormally.
| Model No. | ISL-QCD-G400W | ISL-QCD-G500W | ISL-QCD-G600W | ISL-QCD-G800W | ISL-QCD-G1000W | ISL-QCD-G1200W | ISL-QCD-G1500W | ISL-QCD-G1800W |
| Rated Power | 400W | 500W | 600W | 800W | 1000W | 1200W | 1500W | 1800W |
| Light Efficiency | 150lm/W | |||||||
| Input Voltage | AC100-277V, 50/60Hz | |||||||
| LED Chip | Lumileds/ Osram | |||||||
| LED Driver | Sosen/ Meanwell/ MOSO (DALI, DMX) | |||||||
| Beam Angle | 10°/ 25°/ 45°/ 60°/ 90°/ Asymmetrical 60° | |||||||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | |||||||
| CRI | >70/ 80Ra | |||||||
| IP Rating | IP66 | |||||||
| IK Rating | IK08 | |||||||
| SPD | 10KV | |||||||
| Operation Temperature | ﹣35°C- +50°C | |||||||
| Warranty | 5Years | |||||||
| Lifespan | 50,000Hrs | |||||||
| Dimension | 718*214*222mm | 718*214*222mm | 718*214*222mm | 732*439*290mm | 732*439*290mm | 732*439*290mm | 732*666*290mm | 732*666*290mm |
| N.W. | 19.15KG | 19.65KG | 20.05KG | 32.00KG | 33.00KG | 34.00KG | 46.00KG | 47.30KG |
| Certificate | CCC / CQC / TUV / CB / FCC / SAA / CE / RoHS | |||||||
