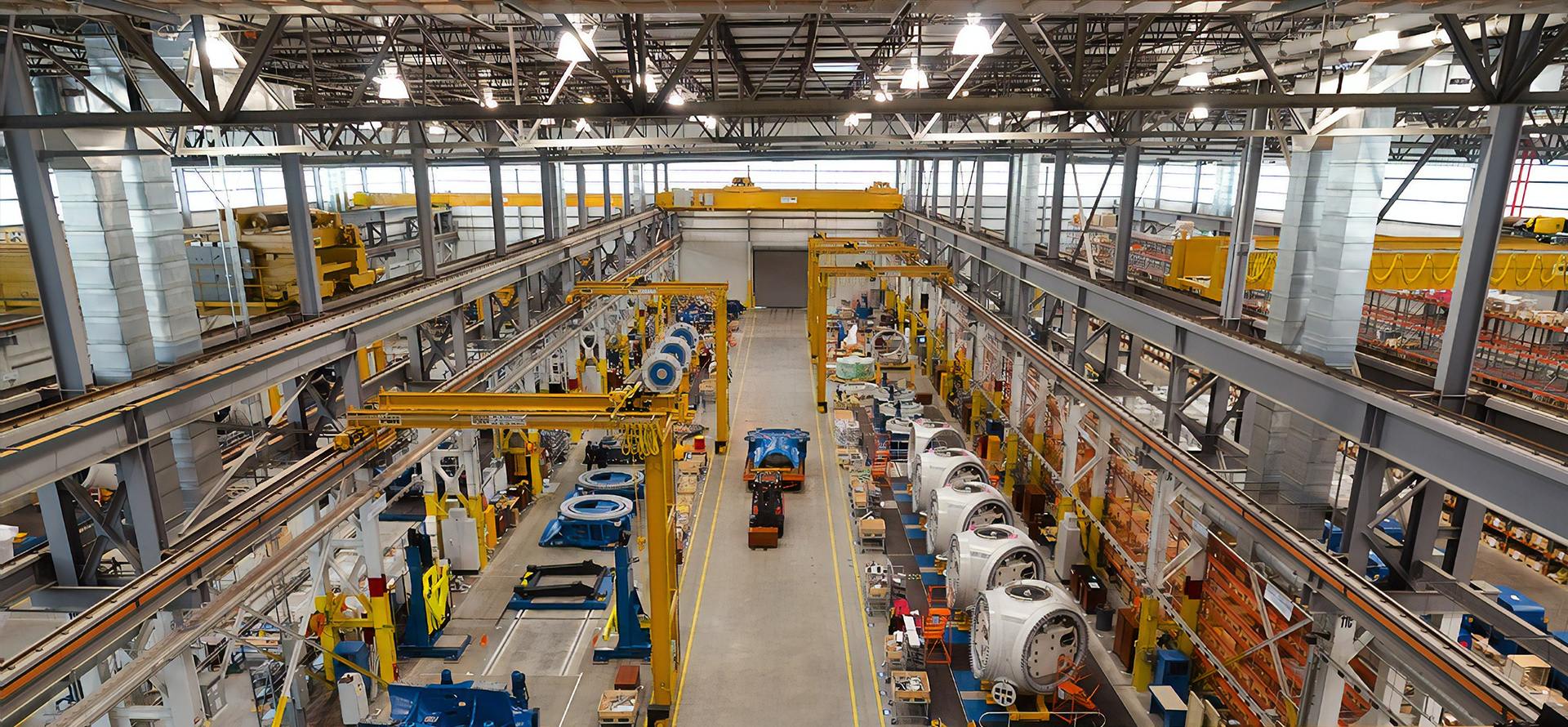

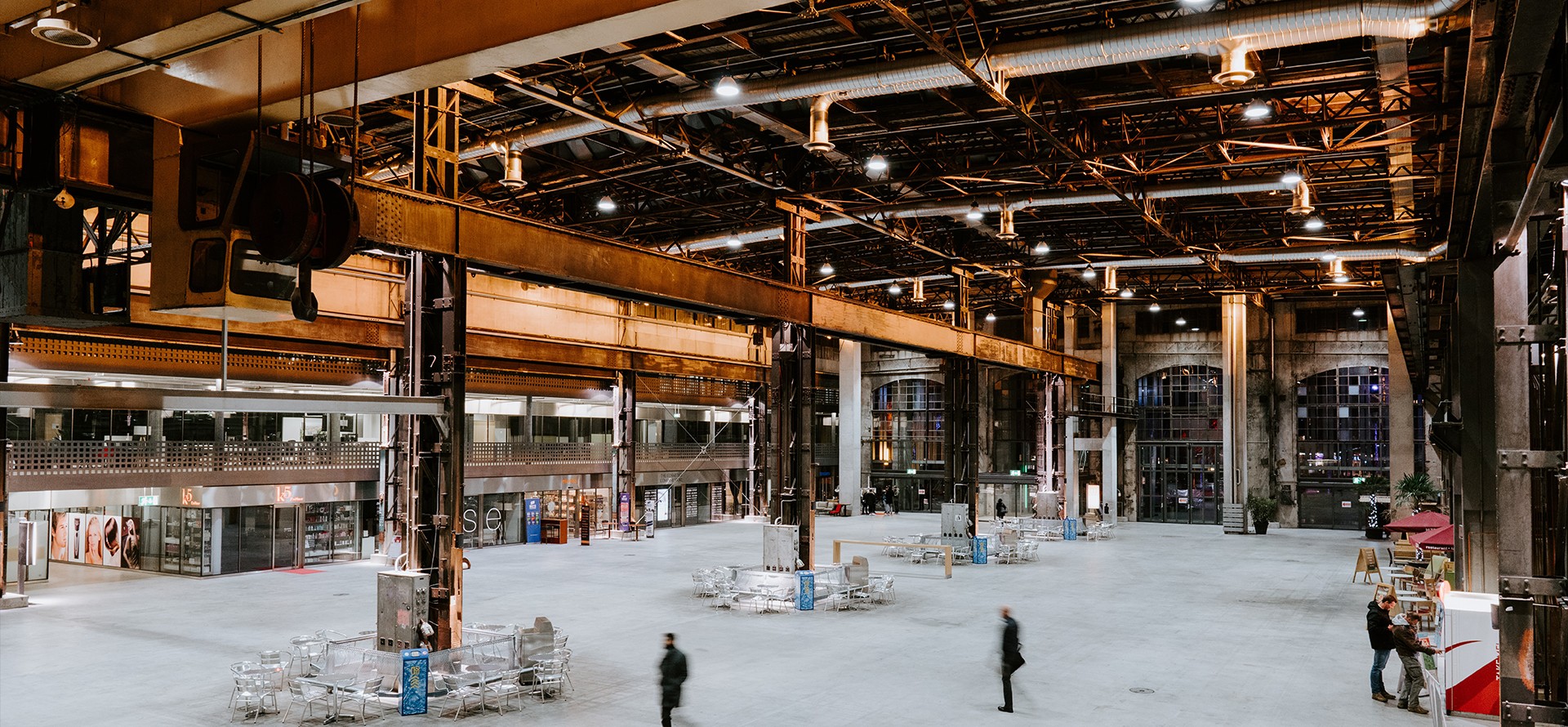

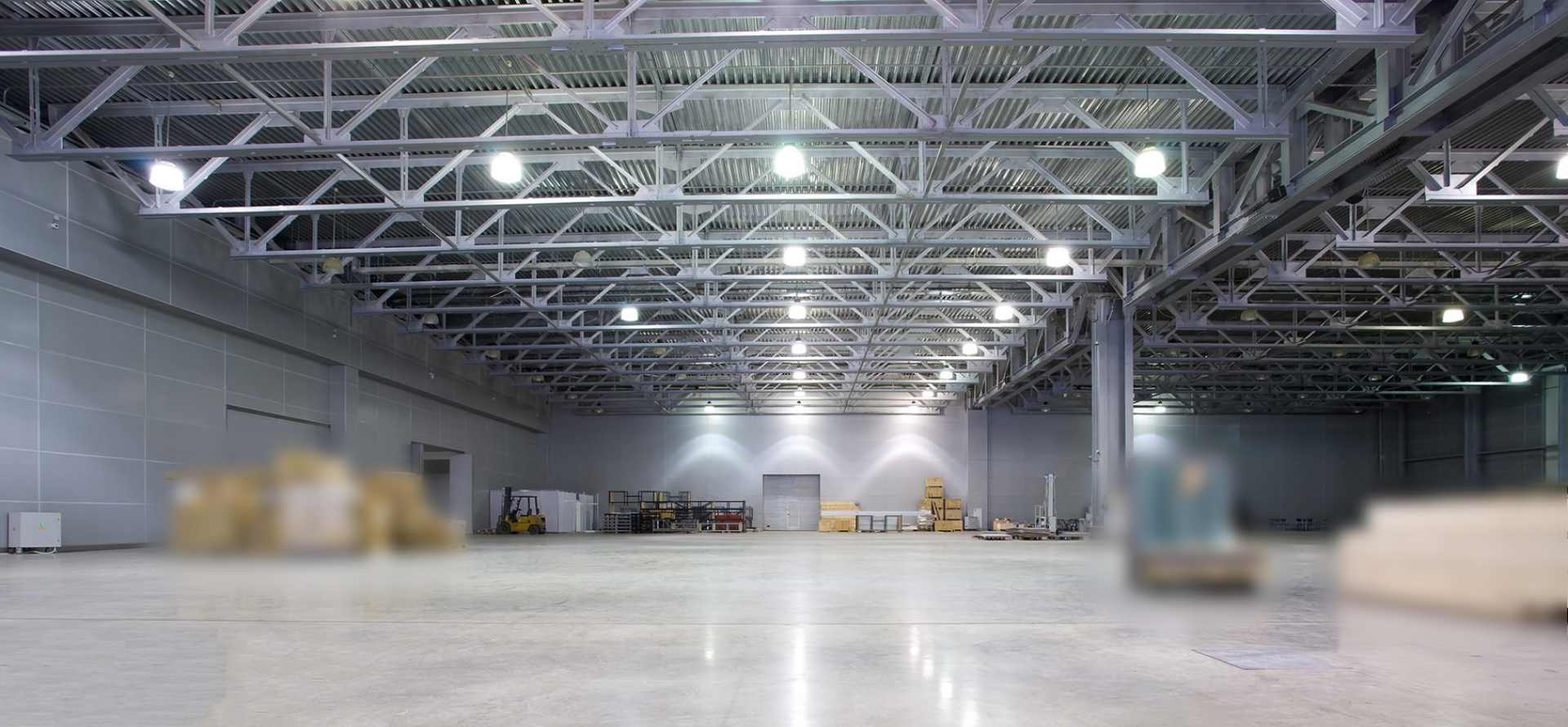

It can be widely used in Workshops, Warehouse, Exhibition halls, Supermarkets, Gyms, Indoor stadiums, Gas stations, Logistics centers, Underground parking lots, etc

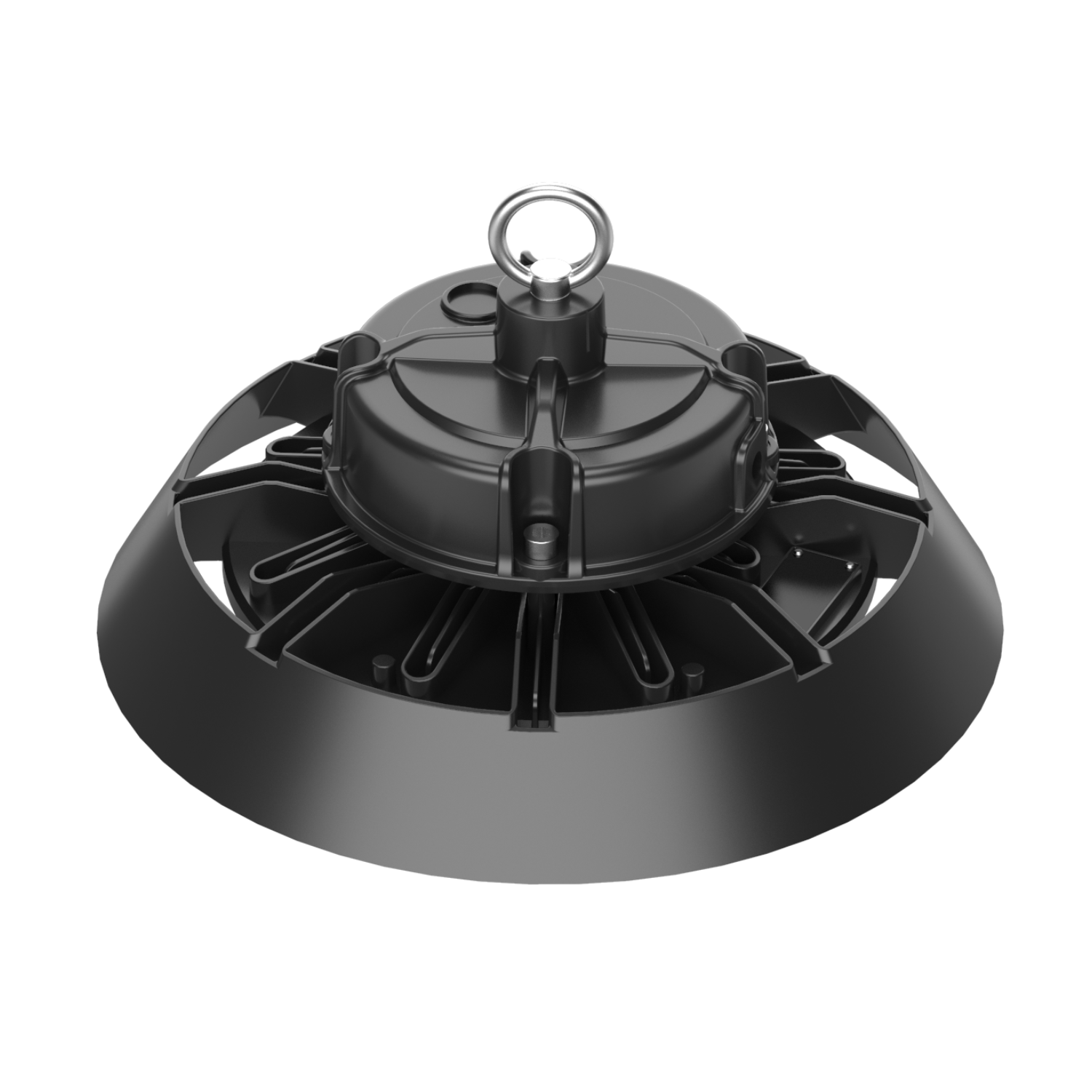

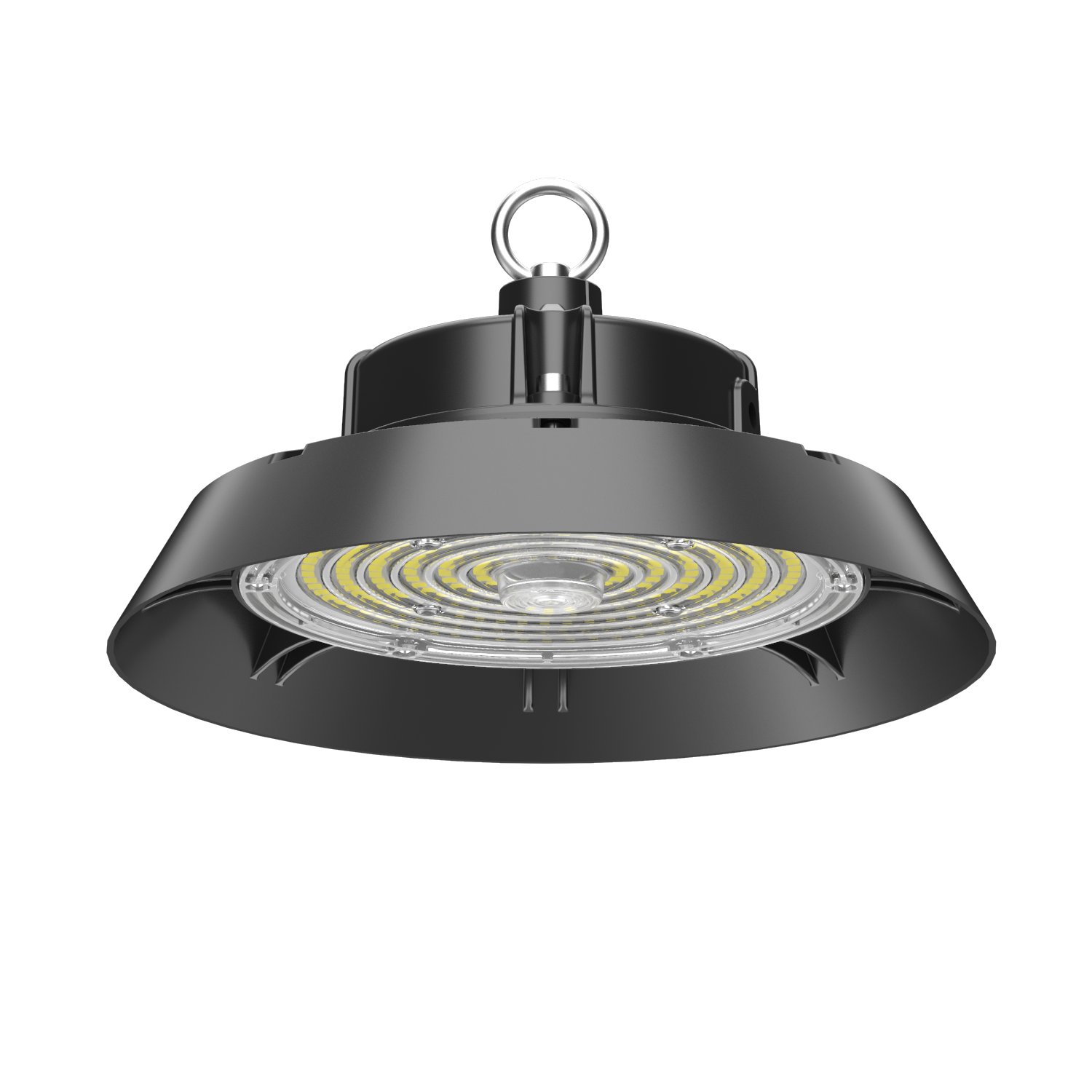

Lightweight, impact resistant fixture is designed for easy and safe installation.
Die-casting technology by ADC12, excellent thermal management, reduce the temperature difference and ensure the lumen depreciation.

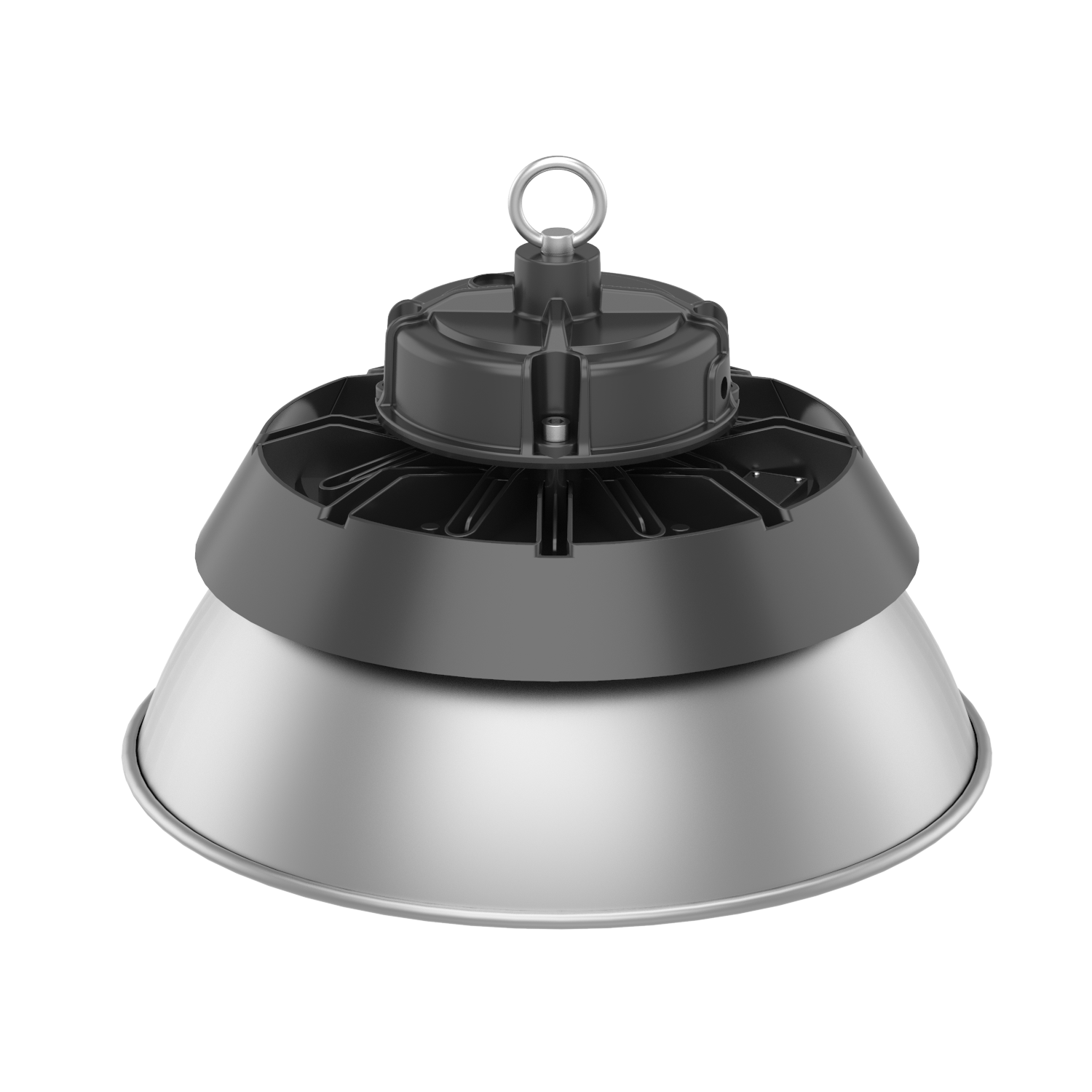

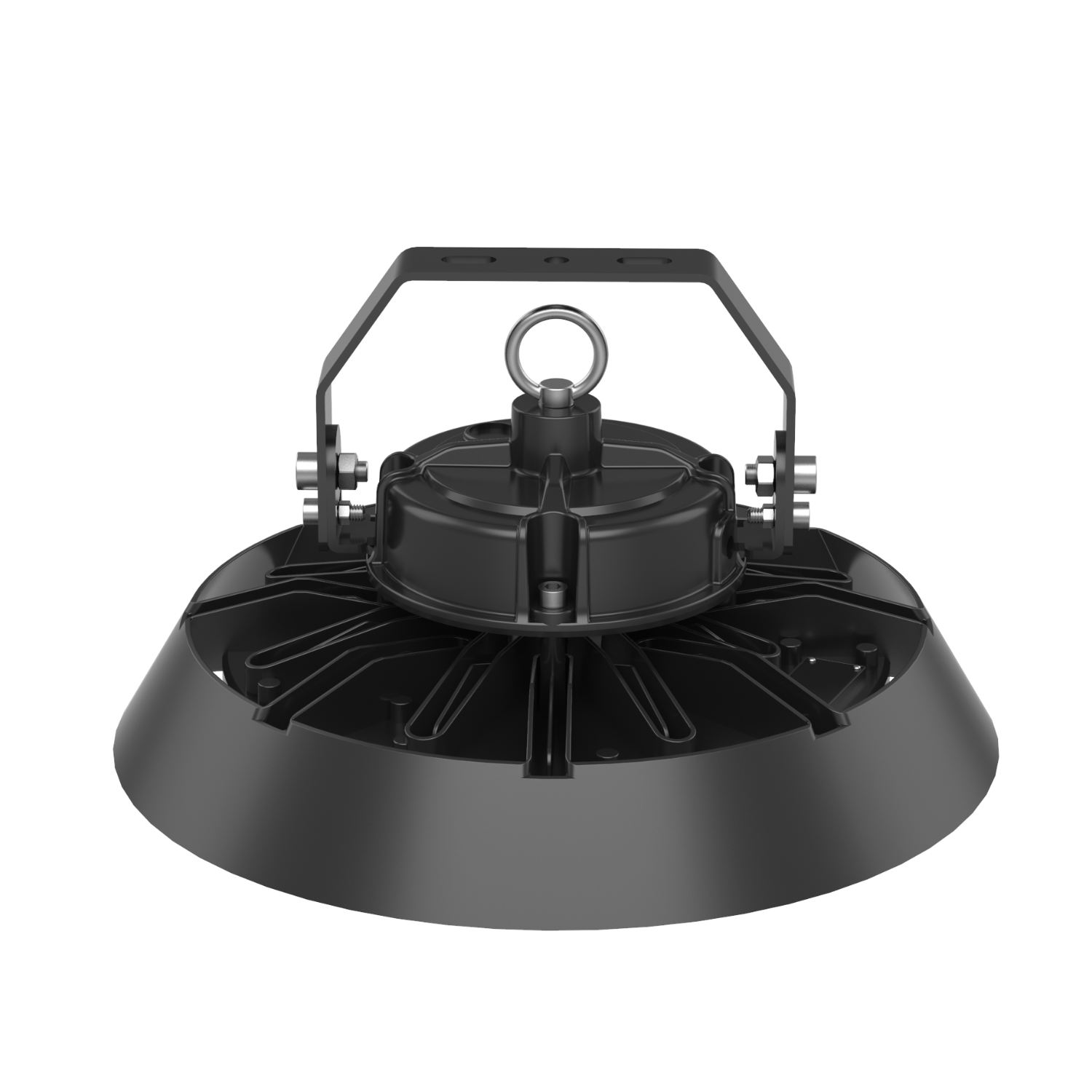

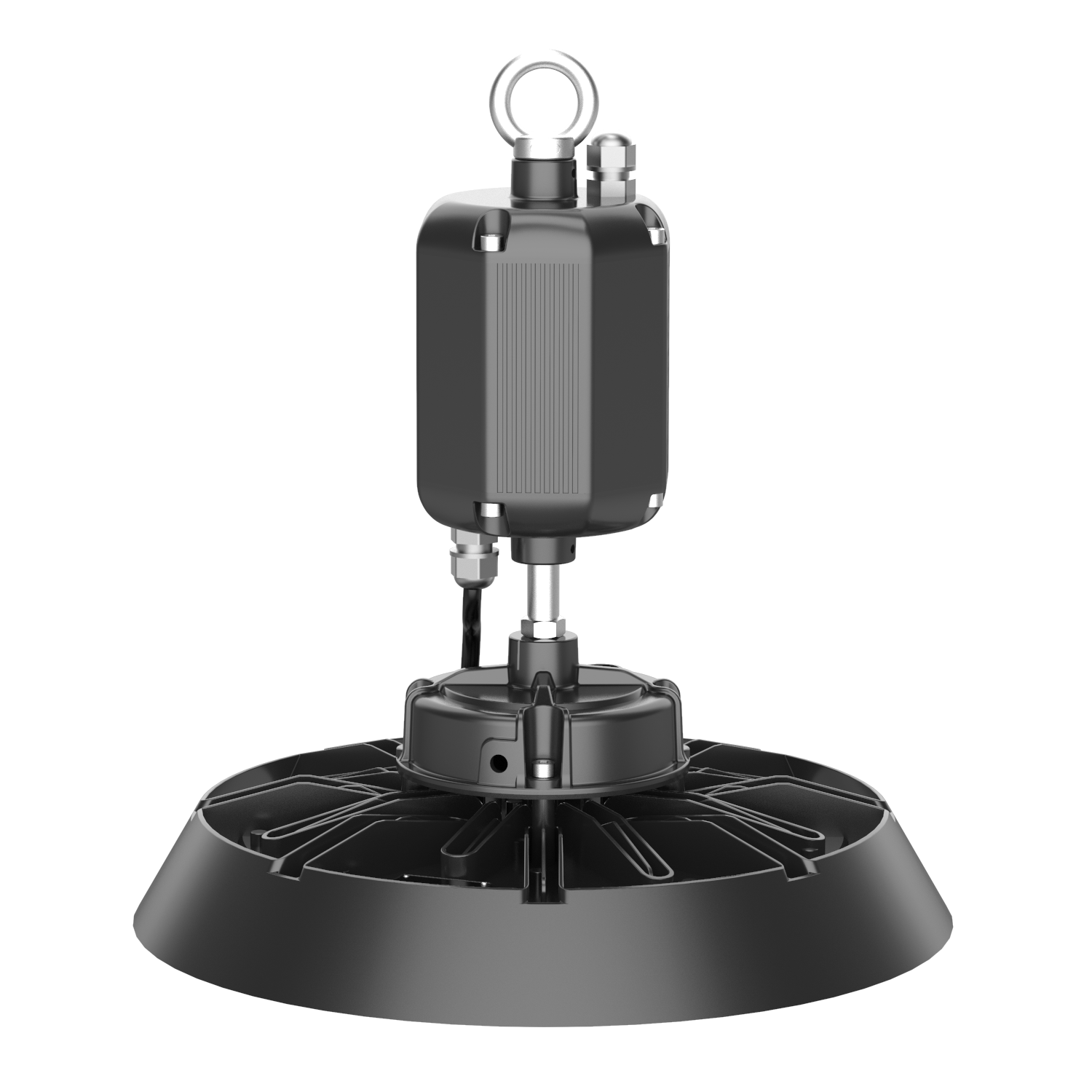

Multiple mounting options for a variety of applications, Pendant, loop.

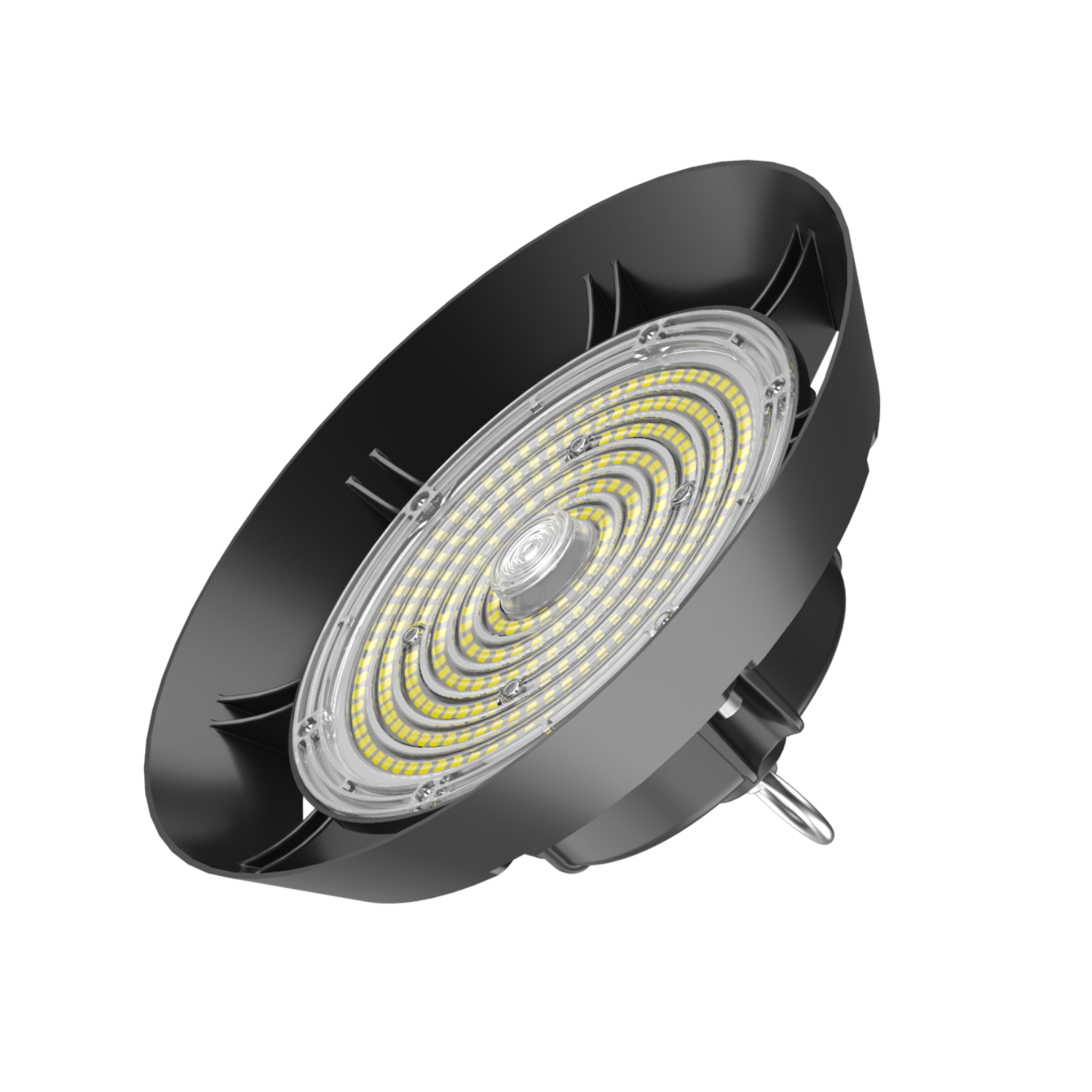

High strength polycarbonate lens, achieve IK 08, Anti-UV, transmitiance > 94%
Multiple lighting distributions: 60°/90°/120°
Top brand LED chip and driver, ensure the product quality and lifetime
Ingress Protection Rating: IP65
Operation Temperature: -35℃-+50℃
Up to 150lm/W, 170lm/W, 190lm/W
CRI: 80Ra
Offered in 100W, 150W, 200W, 240W and 300W
Options: 3CCT & Power Adjustable
Working Temperature: -35~+50℃
Storage Temperature: -35~+50℃
Working Humidity: 0%~85%
Storage Humidity: 0%~90%
Warning
1. Please install the lamp according to the installation to avoid dropping and electric shock.
2. Don't exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
3. Working voltage is not to be exceeded AC100-277V 50/60Hz.
Attention
1. Don't install the lamp to non-stable place.
2. Installed by qualified electrician.
3. Switch off the switch box and contact certified electrician if the lamp works abnormally.
| Regular | Model No. | ISL-HB15-A-100W | ISL-HB15-A-150W | ISL-HB15-A-200W | ISL-HB15-A-240W | ISL-HB15-A-300W |
| Rated Power | 100W | 150W | 200W | 240W | 300W | |
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | |||||
| Light Efficiency | 150lm/W, 170lm/W, 190lm/W | |||||
| 3CCT & Power Adjustable | Model No. | ISL-HB15-D-100W | ISL-HB15-D-150W | ISL-HB15-D-200W | ISL-HB15-D-240W | ISL-HB15-D-300W |
| 3-Power | 120W-100W-80W | 150W-120W-100W | 200W-150W-100W | 240W-200W-150W | 300W-240W-200W | |
| 3-CCT | 3000K-4000K-5700K | |||||
| Light Efficiency | 150lm/W-160lm/W-170lm/W | |||||
| Input Voltage | AC100-277V, 50/60Hz | |||||
| LED Chip | San'an2835/ Lumileds2835 | |||||
| LED Driver | Sosen/ ZH | |||||
| Beam Angle | 60°/ 90°/ 120° | |||||
| CRI | 80Ra | |||||
| Power Factor | 0.95 | |||||
| IP Rating | IP65 | |||||
| Operation Temperature | ﹣35°C- +50°C | |||||
| Warranty | 5Years | |||||
| Lifespan | 50,000Hrs | |||||
| Dimension | ø237*109mm | ø260*111mm | ø306*122mm | ø362*127mm | ø408*132mm | |
| N.W. | 1.5KG | 1.7KG | 2.2KG | 2.7KG | 3.3KG | |
| Certificate | CCC / CQC / TUV / CB / FCC / SAA / CE / RoHS | |||||
