Suitable for Square, Plaza, Garden, Lawn, Playground, Tennis Stadium, Golf Course, Bus Station, Airport, Parking Lot, Tunnel, etc.
Offered in 30W-500W
Light efficiency up to 150lm/W
Optical lighting distribution: 120°/ 30°/ 60°/ 90°/ 70*150°
Die-casting technology by ADC12, excellent thermal management, reduce the temperature difference and ensure the lumen depreciation
Tempered glass, Integrated Breather Valve: Balances The Internal & External Temperature and Humidity
Offset bracket design, Racked Angle ±120° adjustable, Allows For Precise Installation
Ingress Protection Rating: IP66
Options: 3CCT & Power Adjustable
Working Temperature：-25℃-+50℃
Storage Temperature：-25℃-+50℃
Working Humidity：0%~85%
Storage Humidity：0%~90%
Warning

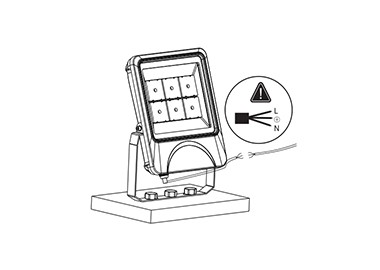

1. Please install the lamp according to the installation to avoid dropping and electric shock.
2. Don't exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
3. Working voltage is not to be exceeded AC100-277V 50/60Hz.
Attention
1. Don't install the lamp to non-stable place.
2. Installed by qualified electrician.

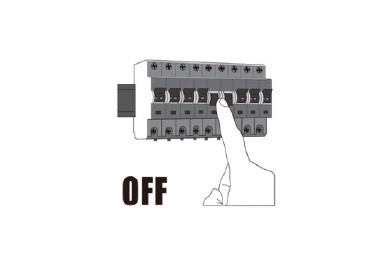

3. Switch off the switch box and contact certified electrician if the lamp works abnormally.
| Regular | Model No. | ISL-FL03-A-30W | ISL-FL03-A-50W | ISL-FL03-A-100W | ISL-FL03-A-150W | ISL-FL03-A-200W | ISL-FL03-A-250W | ISL-FL03-A-300W | ISL-FL03-A-400W | ISL-FL03-A-500W |
| Rated Power | 30W | 50W | 100W | 150W | 200W | 250W | 300W | 400W | 500W | |
| Light Efficiency | 150lm/W | |||||||||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | |||||||||
| 3CCT & Power Adjustable | Model No. | / | / | ISL-FL3-B-100W | ISL-FL3-B-150W | ISL-FL3-B-200W | ISL-FL3-B-250W | ISL-FL3-B-300W | / | ISL-FL3-B-500W |
| 3-Power | / | / | 120W-100W-80W | 150W-120W-100W | 200W-150W-100W | 240W-200W-150W | 300W-240W-200W | / | 500W-400W-300W | |
| 3-CCT | 3000K-4000K-5700K | |||||||||
| Light Efficiency | 150lm/W | |||||||||
| Input Voltage | AC100-277V, 50/60Hz | |||||||||
| LED Chip | Lumileds 2835 | |||||||||
| LED Driver | Sosen/ Meanwell | |||||||||
| Beam Angle | 120°/ 30°/ 60°/ 90°/ 70*150° | |||||||||
| CRI | 80Ra | |||||||||
| IP Rating | IP66 | |||||||||
| Operation Temperature | ﹣25°C- +50°C | |||||||||
| Warranty | 5Years | |||||||||
| Lifespan | 50,000Hrs | |||||||||
| Dimension | 217*212*38mm | 254*239*38mm | 302*314*49mm | 358*364*49mm | 386*414*51mm | 460*480*54mm | 460*480*54mm | 550*589*56mm | 550*589*56mm | |
| Certificate | ETL/CQC/CB/CE/ENEC/SAA/FCC/RoHS | |||||||||
