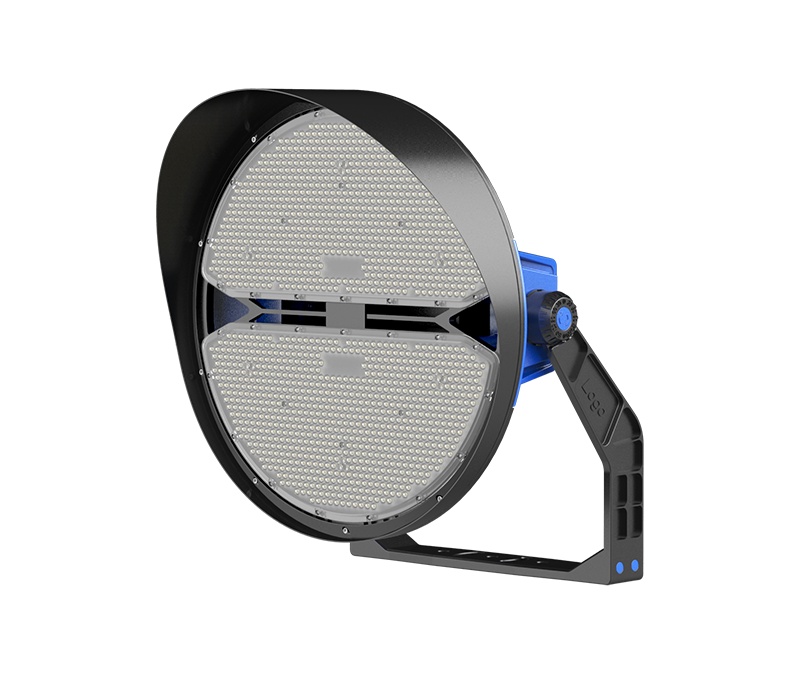

This Sports Light is specifically engineered for a wide range of outdoor sports and activity illumination needs, making it ideal for:
Soccer Fields and Stadiums, Tennis Courts and Basketball Courts, University Sports Grounds and Athletic Facilities, Community Sports Centers and Recreational Areas, Rugby Fields and Cricket Grounds, Track and Field Arenas, Golf Courses, Baseball Diamonds.
High wattage from 400W to 1200W
Light efficiency up to 140lm/W
High strength polycarbonate lens, optical lighting distribution: 10°/ 25°/ 45°/ 60°/ 90°
Integrated die casting heat sink: Excellent thermal management & compact structure
Die-casting aluminum arm &bracket: Anti-typhoon 17 & high corrosion resistance for coastal area
Integrated breather valve: Balance the internal & external temperature and humidity
Top brand LED chip and driver, ensure the product quality and lifetime
Ingress protection: IP66 waterproof
Double surge protection: Driver & extra 10KV SPD
Working Temperature: -35℃ to +50℃
Storage Temperature: -35℃ to +50℃
Working Humidity: 0%~85%
Storage Humidity: 0%~90%
Warning
1. Please install the lamp according to the installation to avoid dropping and electric shock.
2. Don't exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
3. Working voltage is not to be exceeded AC100-277V 50/60Hz.
Attention
1. Don't install the lamp to non-stable place.
2. Installed by qualified electrician.
3. Switch off the switch box and contact certified electrician if the lamp works abnormally.
| Model No. | ISL-QCD-D400W | ISL-QCD-D500W | ISL-QCD-D600W | ISL-QCD-D800W | ISL-QCD-D1000W | ISL-QCD-D1200W |
| Rated Power | 400W | 500W | 600W | 800W | 1000W | 1200W |
| Light Efficiency | 140lm/W | |||||
| Input Voltage | AC100-277V, 50/60Hz | |||||
| LED Chip | Lumileds/ Osram | |||||
| Driver | Sosen/ Meanwell | |||||
| Beam Angle | 10°/ 25°/ 45°/ 60°/ 90° | |||||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | |||||
| CRI | >70/ 80Ra | |||||
| IP Rating | IP66 | |||||
| IK Rating | IK08 | |||||
| SPD | 10KV | |||||
| Operation Temperature | ﹣35°C- +50°C | |||||
| Warranty | 5Years | |||||
| Lifespan | 50,000Hrs | |||||
| Dimension | 493*439*421mm | 493*439*421mm | 493*439*421mm | 651*586*511mm | 651*586*511mm | 651*586*511mm |
| N.W. | 15.90KG | 16.40KG | 16.90KG | 32.00KG | 33.00KG | 34.00KG |
| Certificate | UL/ETL/DLC/TUV/CB/ENEC/CE/SAA/FCC/RoHS/CQC | |||||
